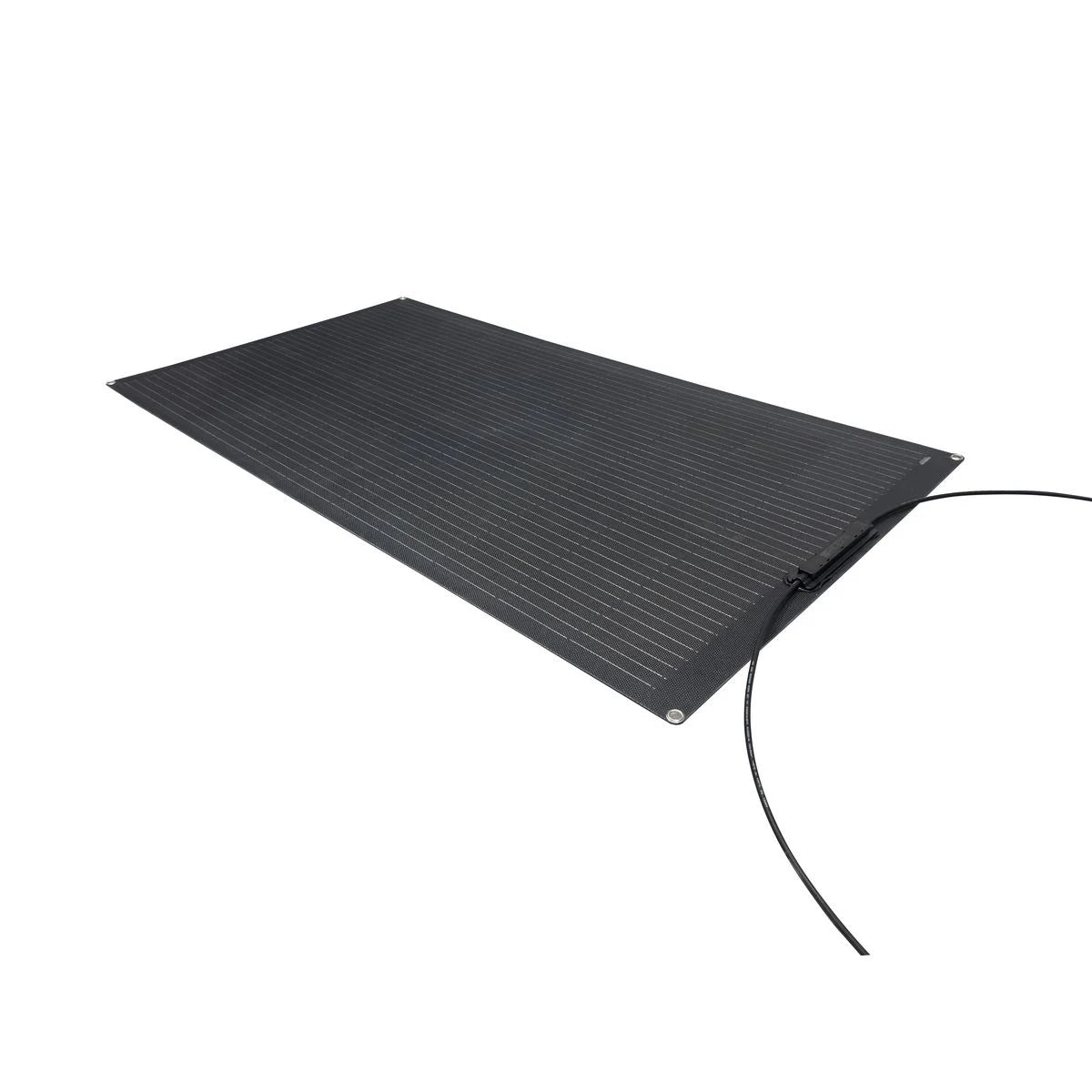

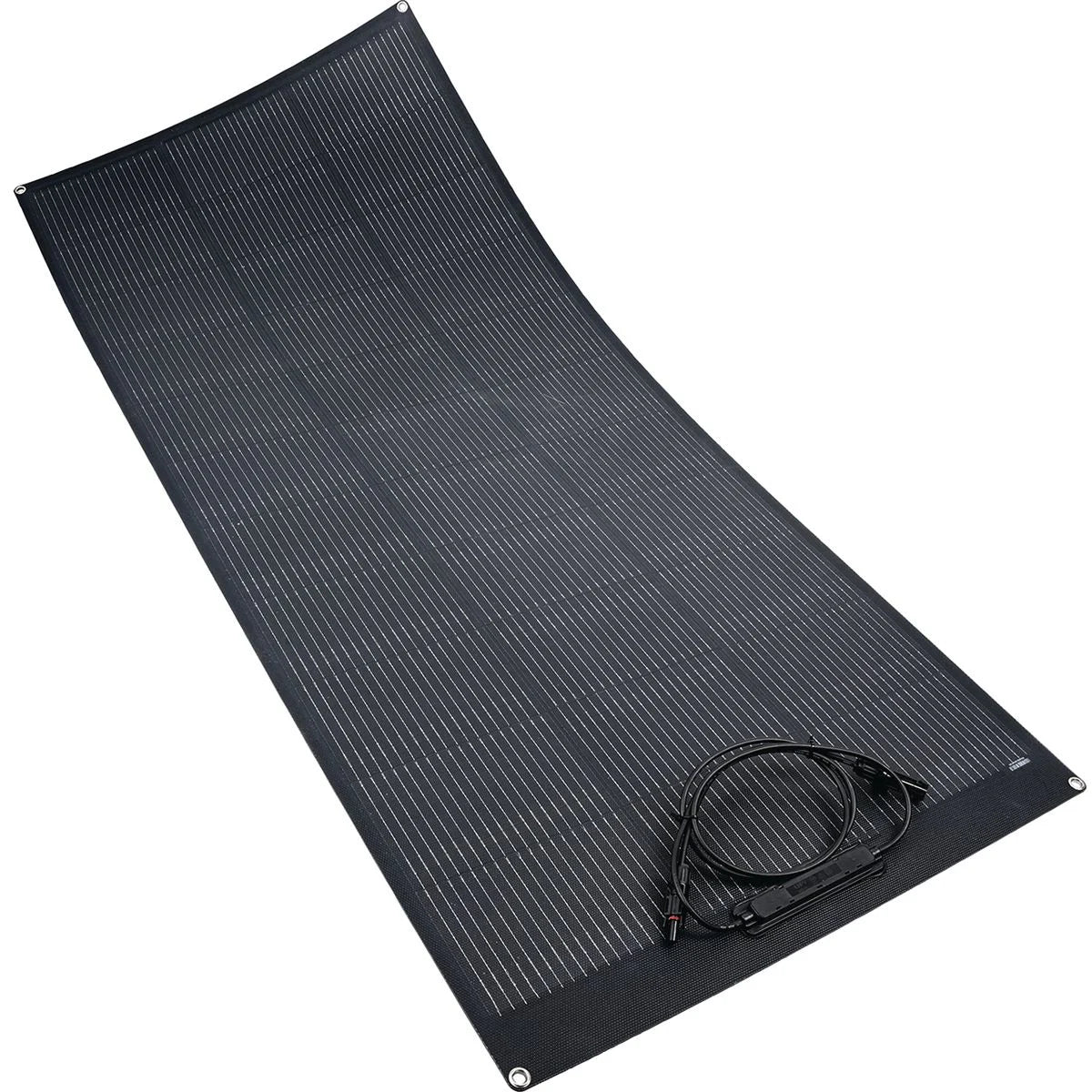

DriveTech 4x4 Semi-Flexible ETFE Solar Panel – 110W, 160W & 200W

Lightweight monocrystalline semi-flexible solar panels for permanent or semi-permanent charging installations on 4WDs, caravans, campers, canopies and boats.

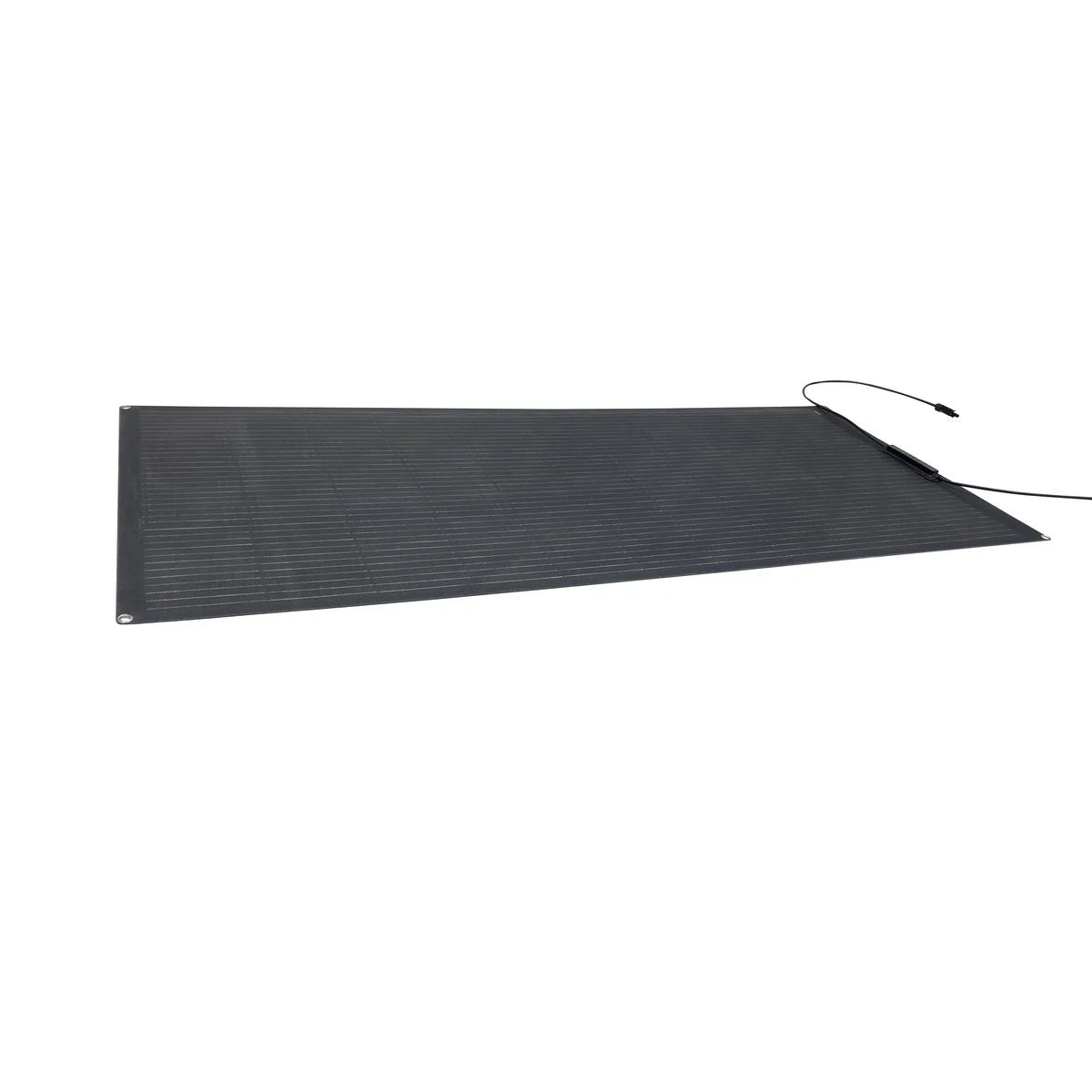

The panels use durable ETFE and anti-crack film construction, with stainless-steel mounting eyelets and an attached 900mm 4mm² cable terminated with MC4 connectors.

110W

• Size: 930 × 670 × 3mm
• Maximum-power voltage/current: 20.16V / 5.45A
• Open-circuit voltage: 23.75V
• Short-circuit current: 6.05A

160W

• Size: 1245 × 670 × 3mm
• Maximum-power voltage/current: 18.5V / 8.65A
• Open-circuit voltage: 21.6V
• Short-circuit current: 9.68A

200W

• Size: 1520 × 680 × 3mm
• Maximum-power voltage/current: 18.5V / 10.8A
• Open-circuit voltage: 22.68V
• Short-circuit current: 11.2A

A suitable solar regulator is required and is not included. Confirm mounting, ventilation, regulator capacity and battery compatibility before installation.
