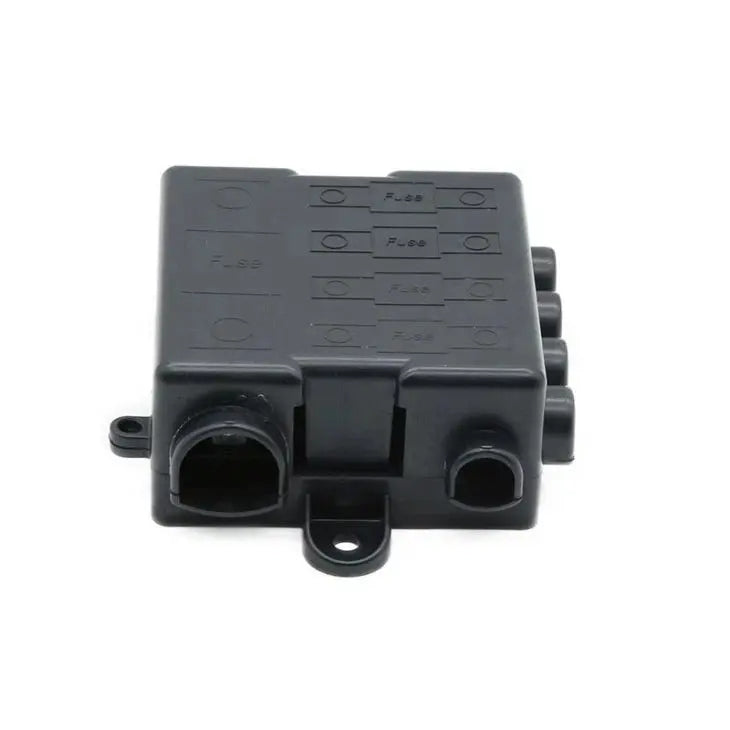

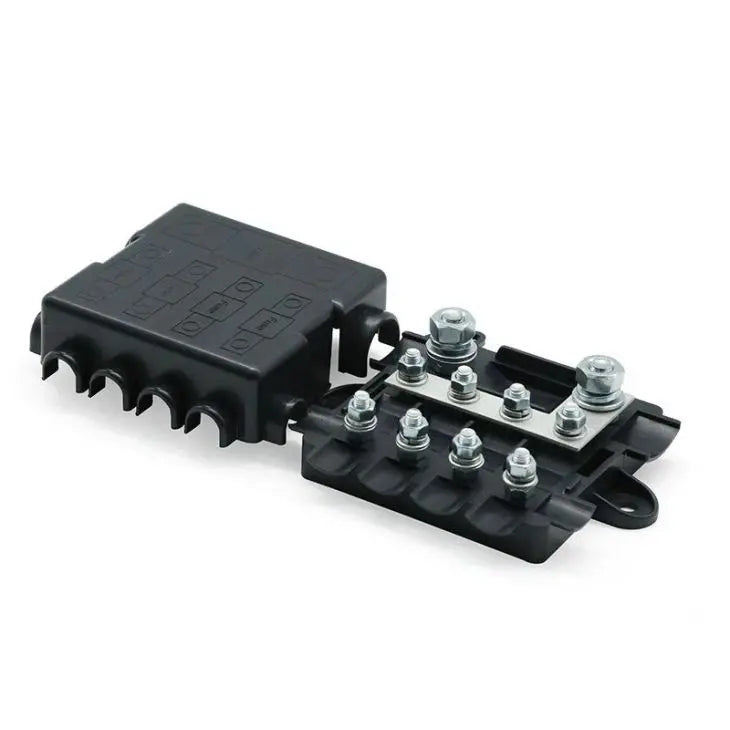

MEGA + 4-Way MIDI Power Distribution Fuse Block

Heavy duty high current fuse distribution block designed to combine a main MEGA fuse circuit with four individually protected MIDI fuse circuits in one compact covered unit.

Suitable for 12V and 24V vehicle, touring, caravan, camper, service body and auxiliary battery installations where several higher current circuits need to be distributed from one central point.

Fuse Layout

• 1 x MEGA fuse position
• 4 x MIDI fuse positions
• 2 x M8 studs for the MEGA circuit
• 8 x M5 studs for the four MIDI circuits

Features

• Integrated protective cover
• Compact surface mount design
• High current power distribution in one enclosure
• Suitable for DC to DC chargers, inverters, compressors and auxiliary power circuits when correctly fused
• Rated for low voltage DC systems up to 32V

Fuses are not included.Select MEGA and MIDI fuse ratings to suit the connected equipment, cable size and installation requirements.
