OEX 50A Modular Bus Block – 12 Row

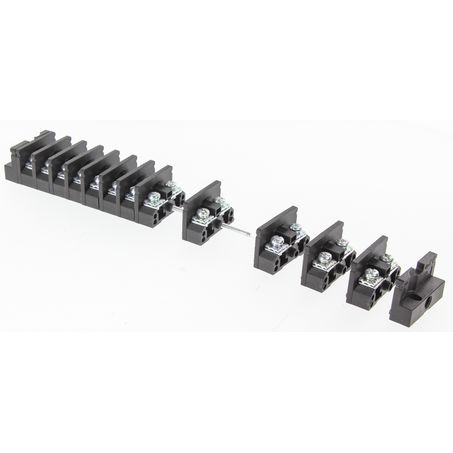

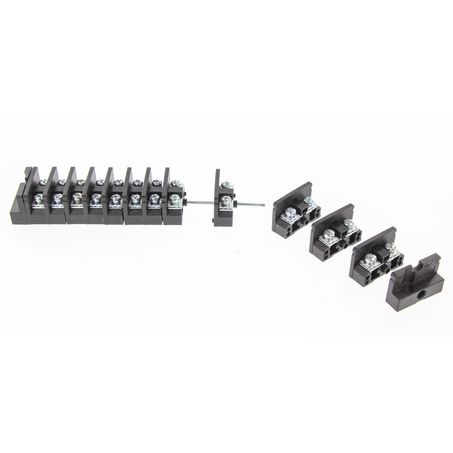

Build a neat, serviceable power-distribution point with the OEX ACX3221 modular bus block. Its connectable terminal sections let you retain all 12 rows or remove sections to create a compact 6, 7, 8, 9, 10 or 11-row block.

Ideal for organised automotive, caravan, marine and workshop wiring where circuits need to be easy to identify, modify and troubleshoot.

Features

• 12-row modular and connectable design
• Configurable from 6 to 12 rows
• 50A current rating
• 600V maximum voltage rating
• 16mm terminal pitch
• Tinned copper terminals
• Steel, nickel-plated screws
• Heat-resistant plastic housing

Specifications

• Dimensions: 220 × 45 × 30mm
• SKU: ACX3221
