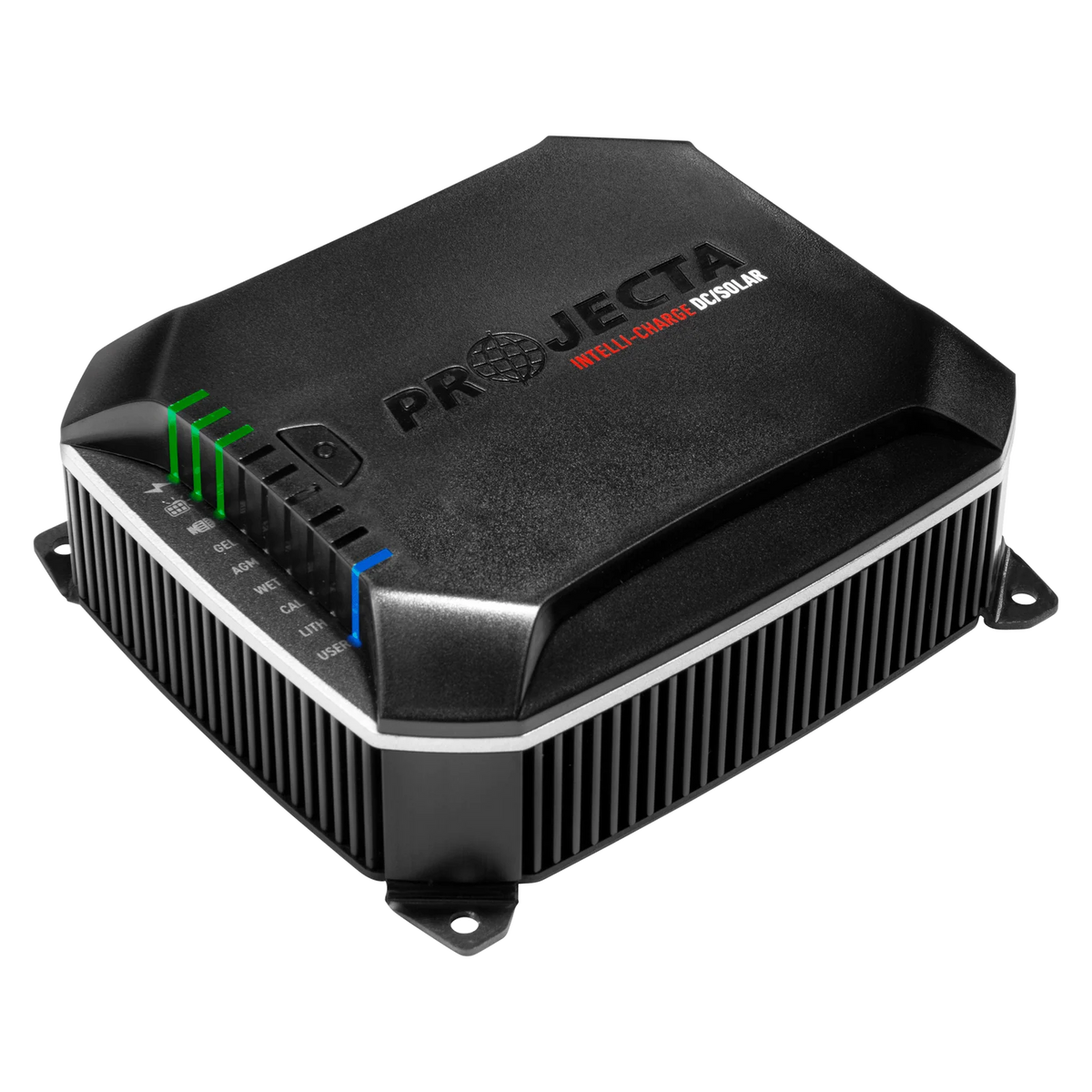

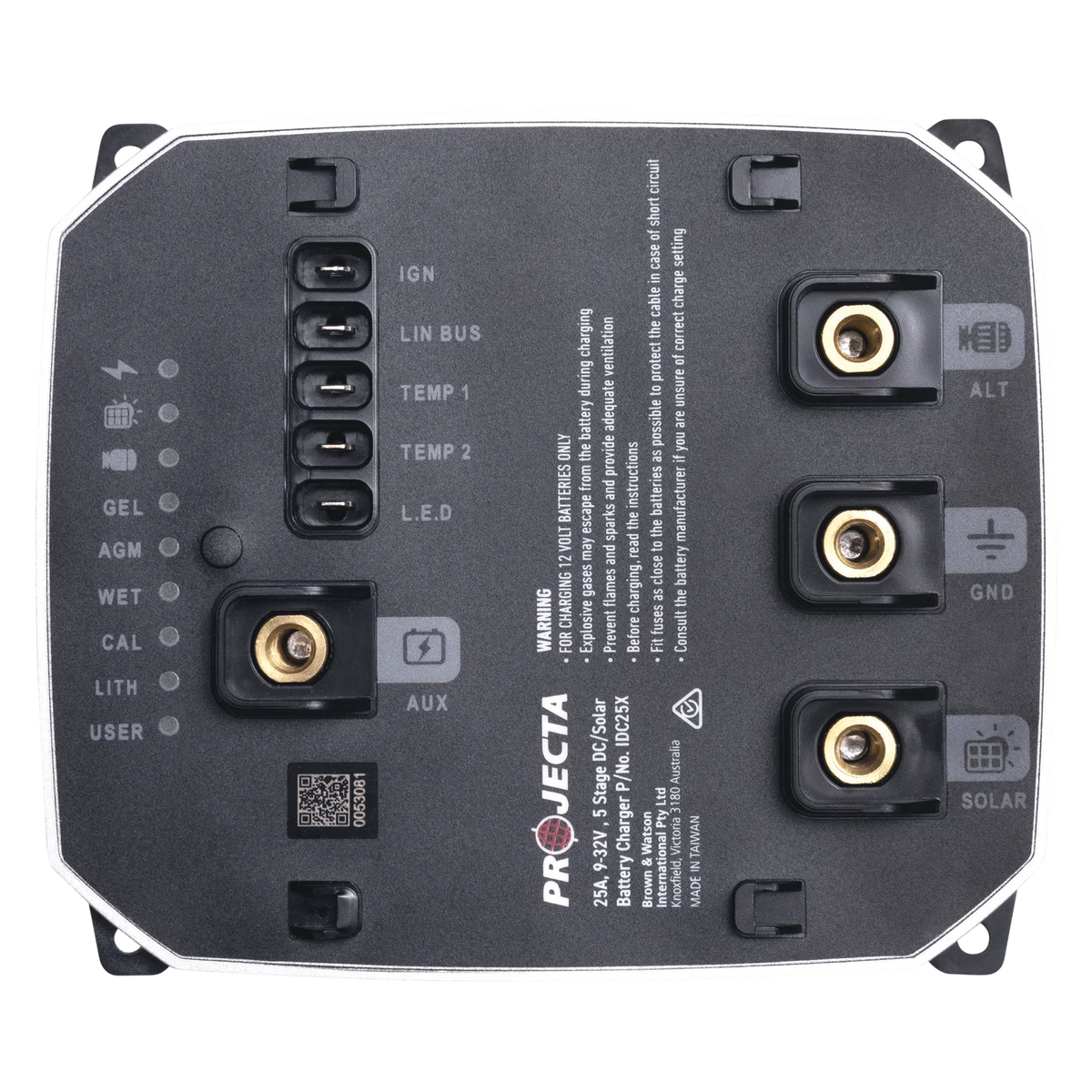

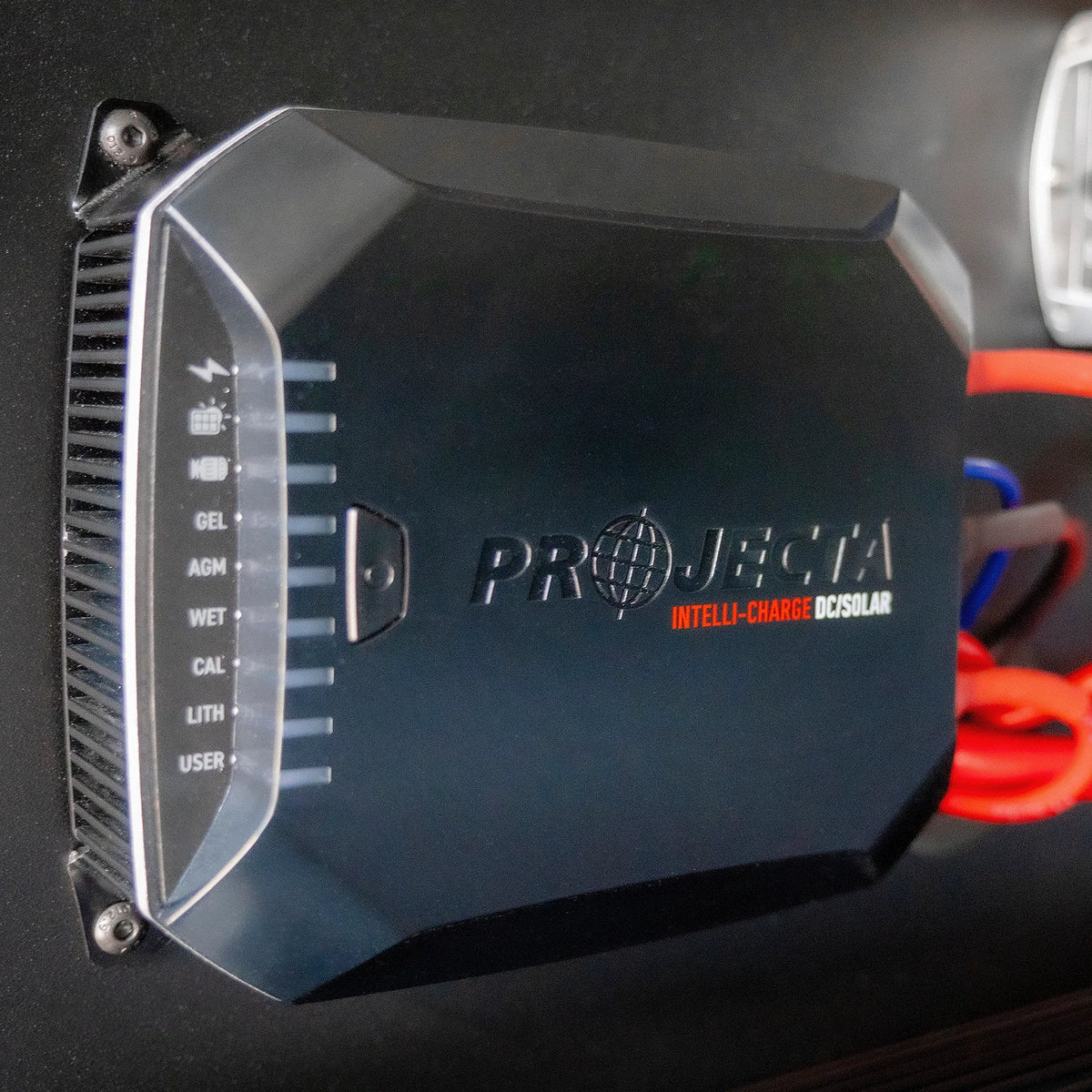

Projecta Intelli Charge IDC25X 25A DC to DC Battery Charger
The Projecta Intelli Charge IDC25X is a rugged 25A DC to DC battery charger designed for 4WD, touring, camper trailer and auxiliary battery systems.
Combining alternator and MPPT solar charging, the IDC25X can charge simultaneously from both inputs while automatically managing the auxiliary battery. Advanced temperature and voltage drop compensation help maintain charging performance across changing conditions, making the unit well suited to demanding vehicle installations.
Designed for conventional and smart alternators, the IDC25X supports lithium LiFePO4, AGM, gel, wet and calcium batteries.
Key Features
- 25A DC to DC charging output
- Integrated MPPT solar charging
- Simultaneous alternator and solar charging
- Compatible with smart and conventional alternators
- Suitable for LiFePO4, AGM, gel, wet and calcium batteries
- 5-stage charging
- Automatic temperature compensation
- Voltage drop compensation
- Lithium battery wake up mode
- IP68 and IP69K dust and water protection

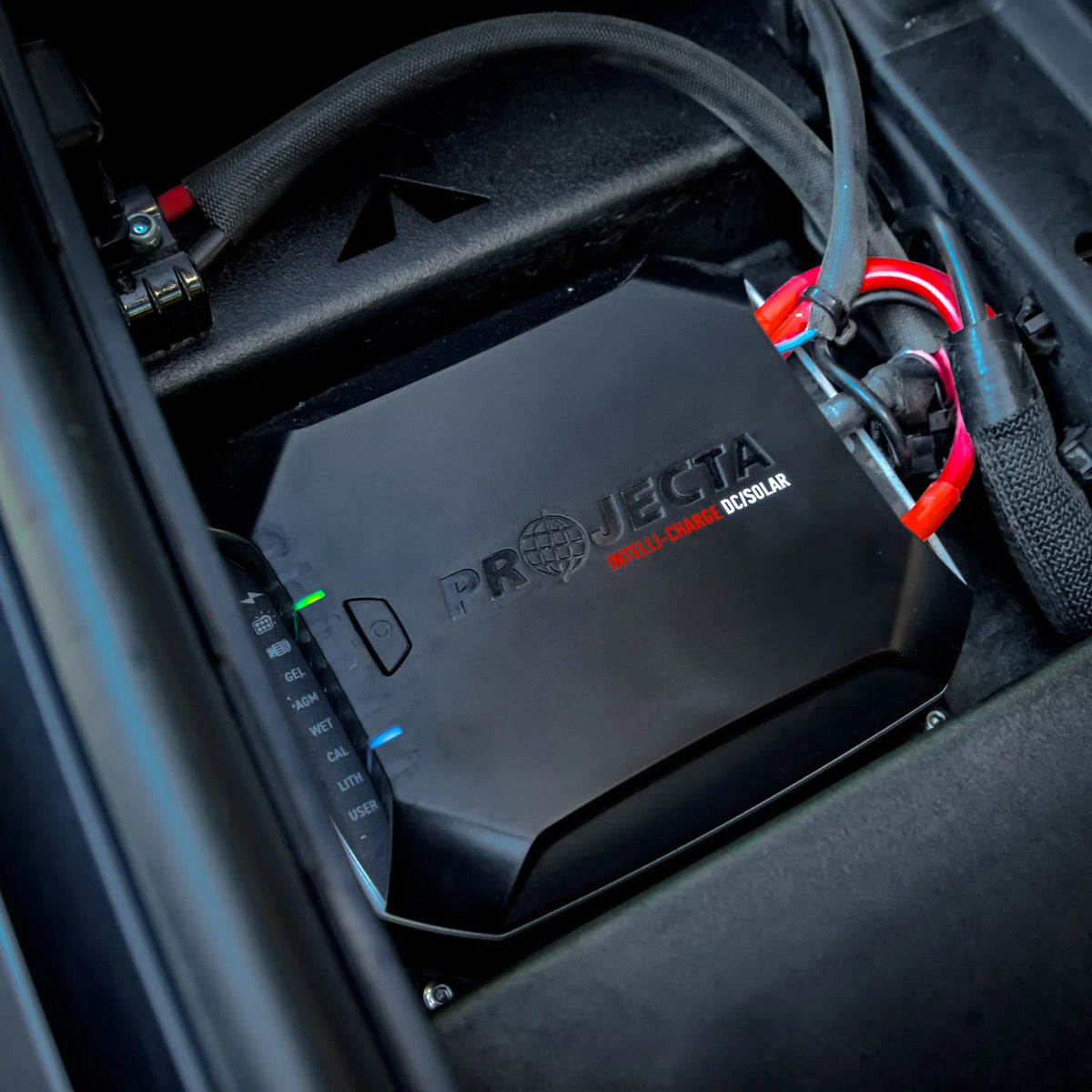

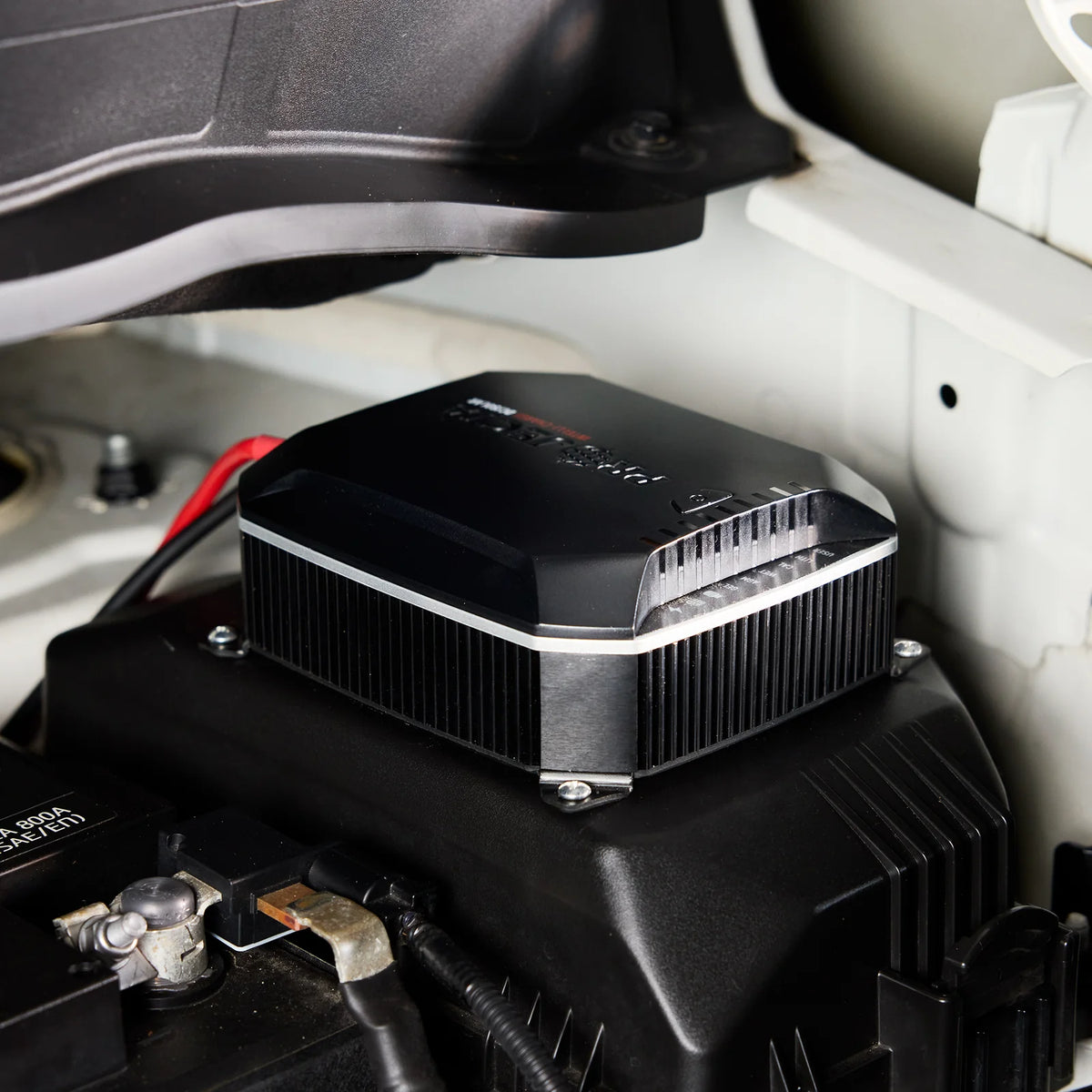

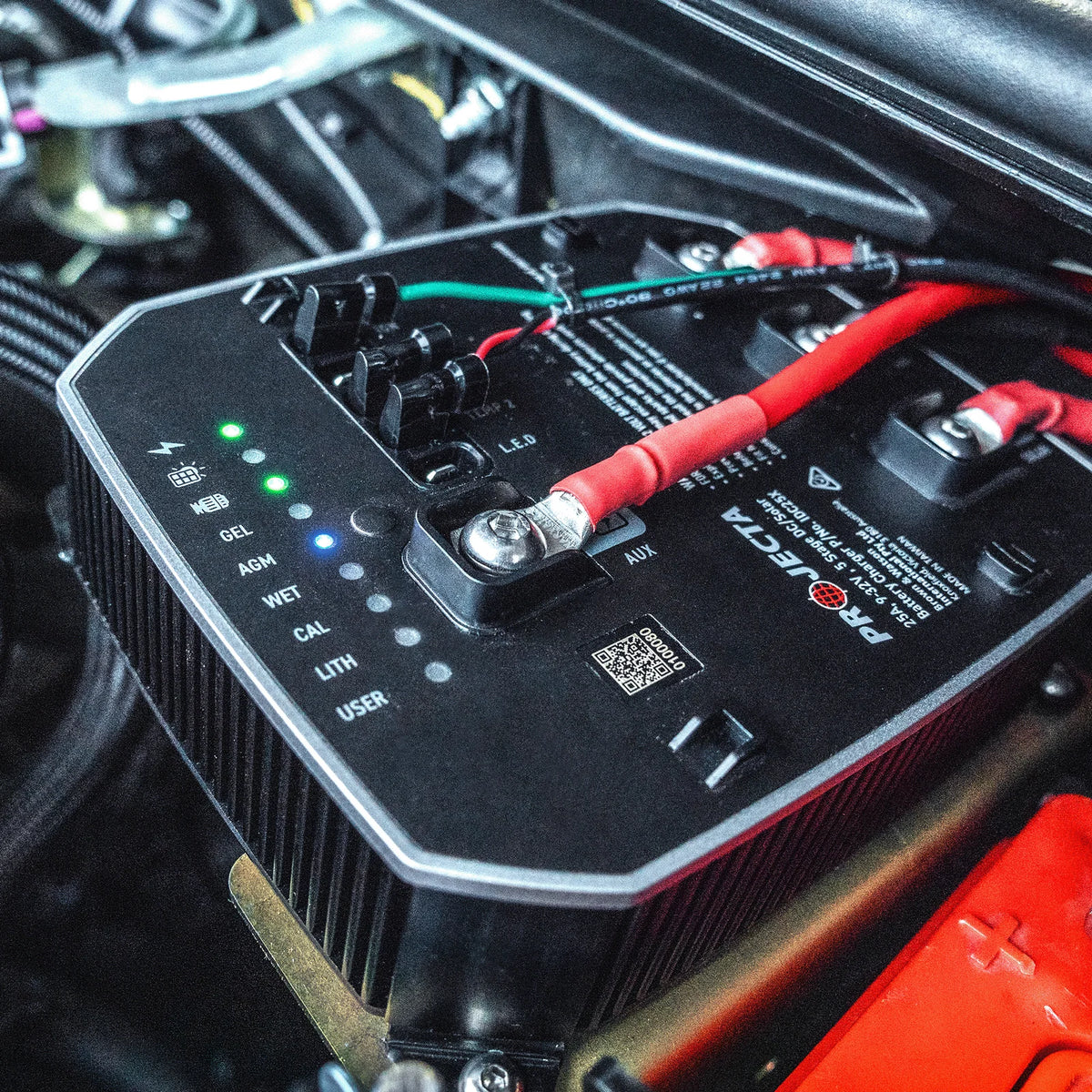

- Suitable for under bonnet installation
- Compatible with the Projecta Intelli IQ monitoring system
- Designed and tested in Australia
- 5-year warranty
Technical Specifications
Charging output:25A at 11 to 32V DC input
Alternator input:9 to 32V DC
Maximum solar input:32V DC / 400W
Battery types:LiFePO4, AGM, Gel, Wet, Calcium
Charge stages:5 Stage
Operating temperature:-10°C to +80°C
Ingress protection:IP68 / IP69K
Dimensions:137 × 122 × 50 mm
Weight:1.18 kg
Warranty:5 years
Model:IDC25X
Complete Your Installation
Pair the Projecta IDC25X with a 12 Volt Hub installation loom or job ready wiring kit for a cleaner and simpler installation.
Choose the charger on its own or combine it with the correct cable, circuit protection, terminals and installation hardware for your application.
