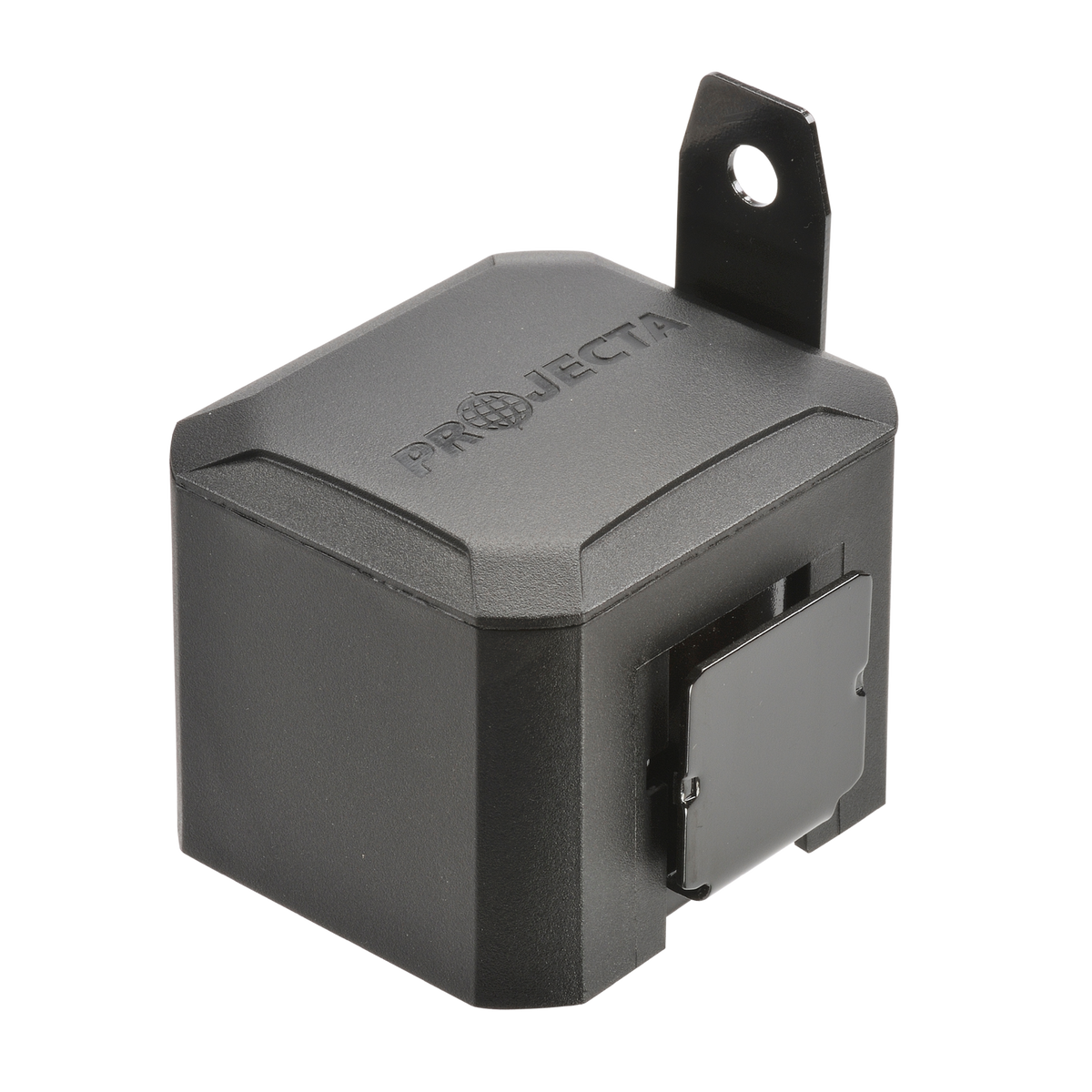

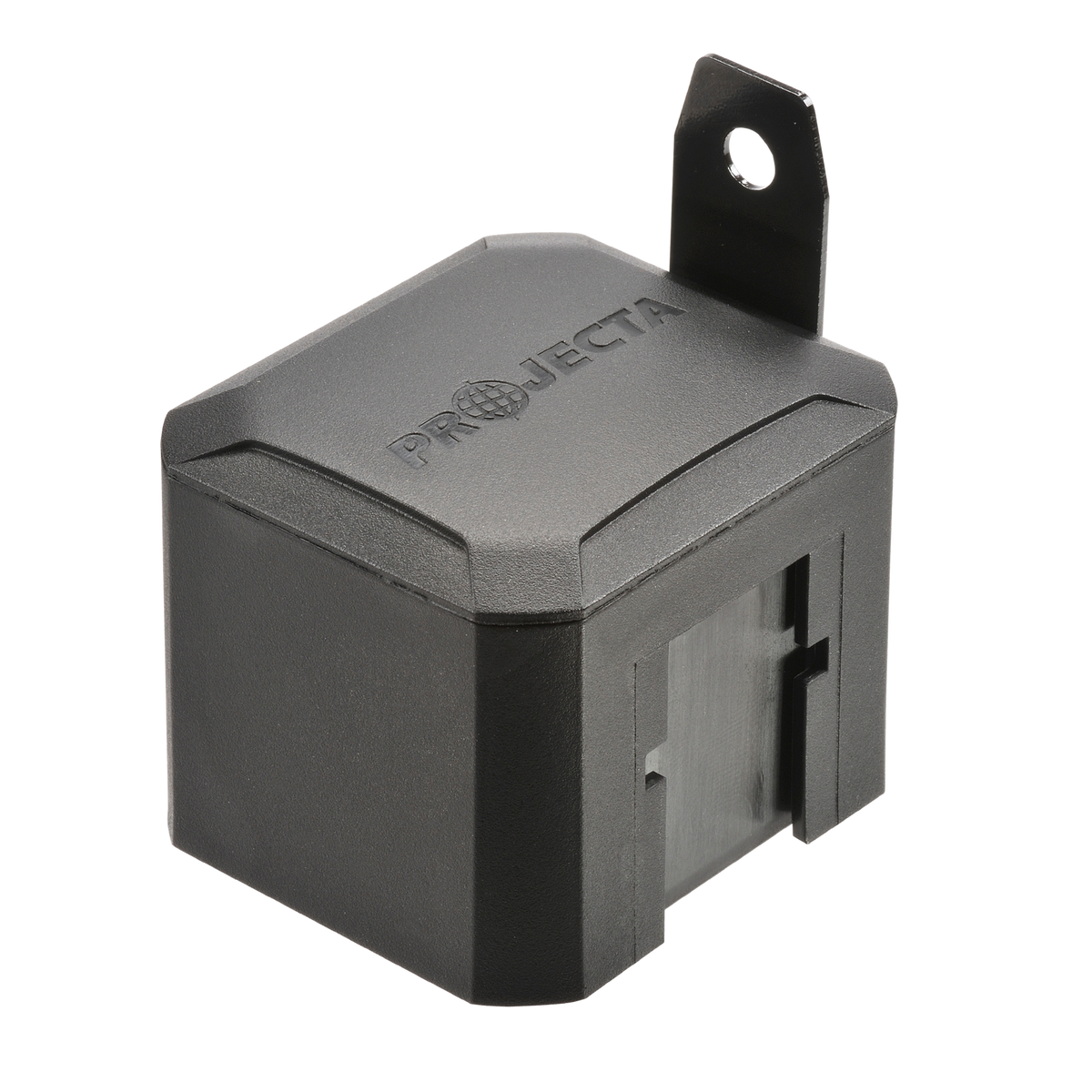

Add one high current controlled circuit to a Projecta Intelli IQ system.
The IQR040 is suited to accessories such as driving lights, compressors and other higher current loads. It connects to an existing Intelli IQ display and can be configured through the system for manual control, timers, voltage based switching and delayed activation.
Specifications
40A maximum at 12V
20A maximum at 24V
IP68 and IP69K environmental protection
12V and 24V compatible
Five year Projecta warranty
This is an expansion relay and requires a Projecta IQD2 Intelli IQ display. Correct circuit protection, cable sizing and installation are required.
