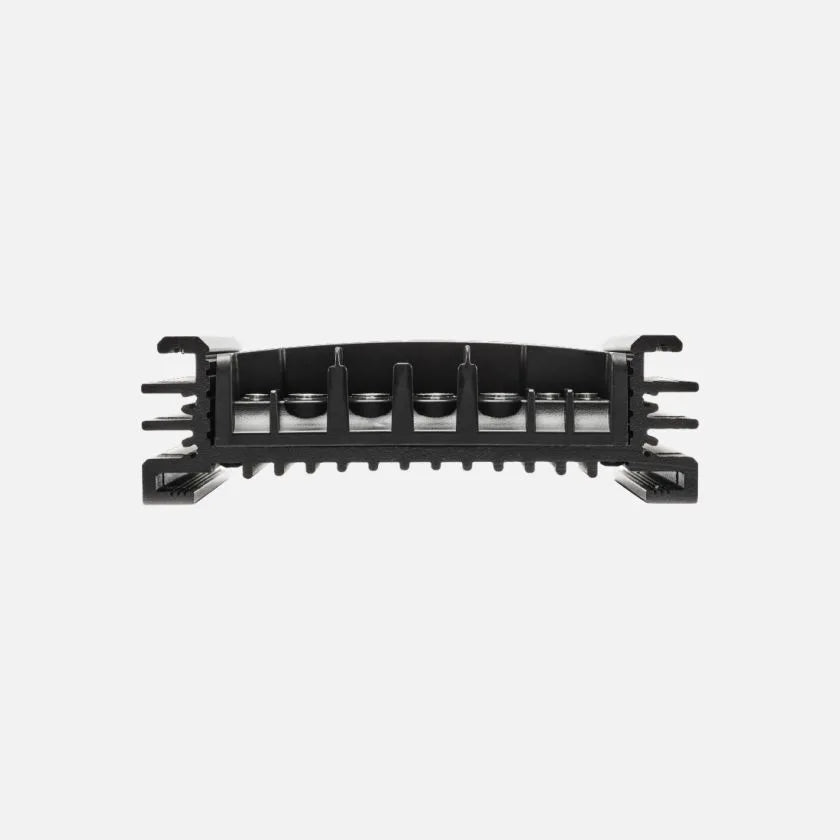

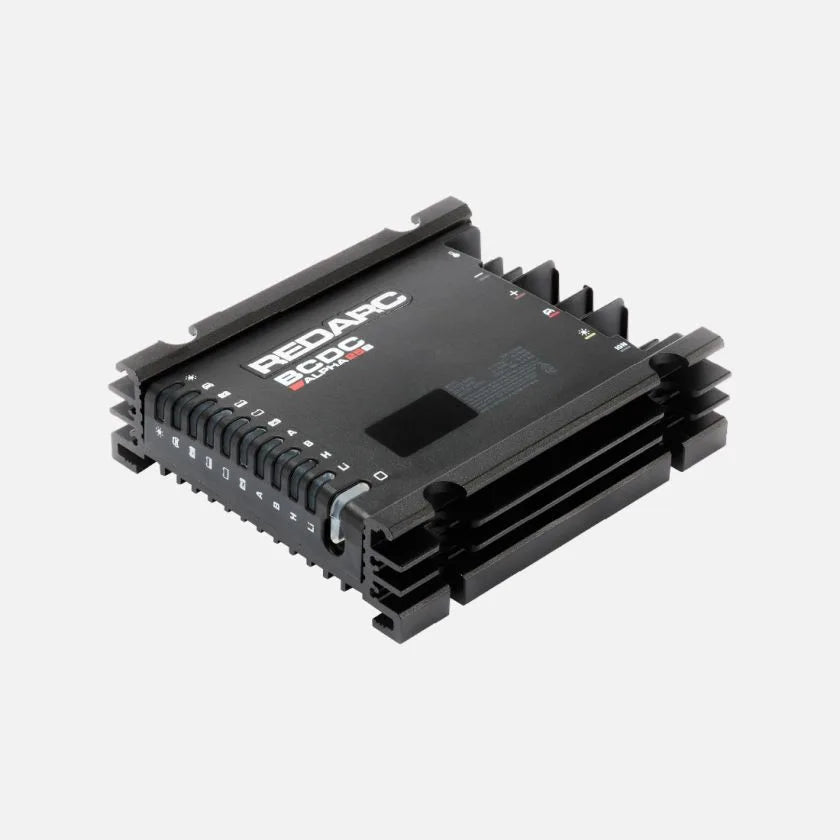

REDARC BCDC Alpha25 12V 25A DC to DC Battery Charger
The REDARC BCDC Alpha25 is a premium 25A DC to DC battery charger designed for modern 4WD, touring and auxiliary battery systems.
Combining alternator and solar charging in one rugged unit, the Alpha25 keeps your auxiliary battery charged while travelling and can prioritise available solar power to reduce demand on the vehicle charging system.
Bluetooth connectivity through the REDARC RedVision app provides real time charger monitoring and control, while adjustable input current limiting makes the Alpha25 particularly useful in modern vehicles with more complex electrical systems.
Key Features
25A DC to DC charging
Integrated MPPT solar charging
Suitable for lithium, AGM, gel, calcium and standard lead acid batteries
Bluetooth monitoring and control through the RedVision app
Adjustable input current limiting
Start battery recovery function
Excess solar can maintain the start battery
IP67/69K dust and moisture protection
Suitable for engine bay installation
Screw terminal connections for simplified installation
Over the air firmware updates
Designed and manufactured in Australia
Technical Specifications
Charging current:25A Nominal output:12V Start battery input:9 to 32V DC Solar input:9 to 48V DC Dimensions:164 × 146 × 44 mm Weight:0.925 kg Warranty:2 years
Complete Your Installation
The Alpha25 can also be paired with 12 Volt Hub installation looms and complete wiring kits for engine bay, mid vehicle and rear mounted installations, giving you the choice between the charger alone or a complete job ready installation solution.
