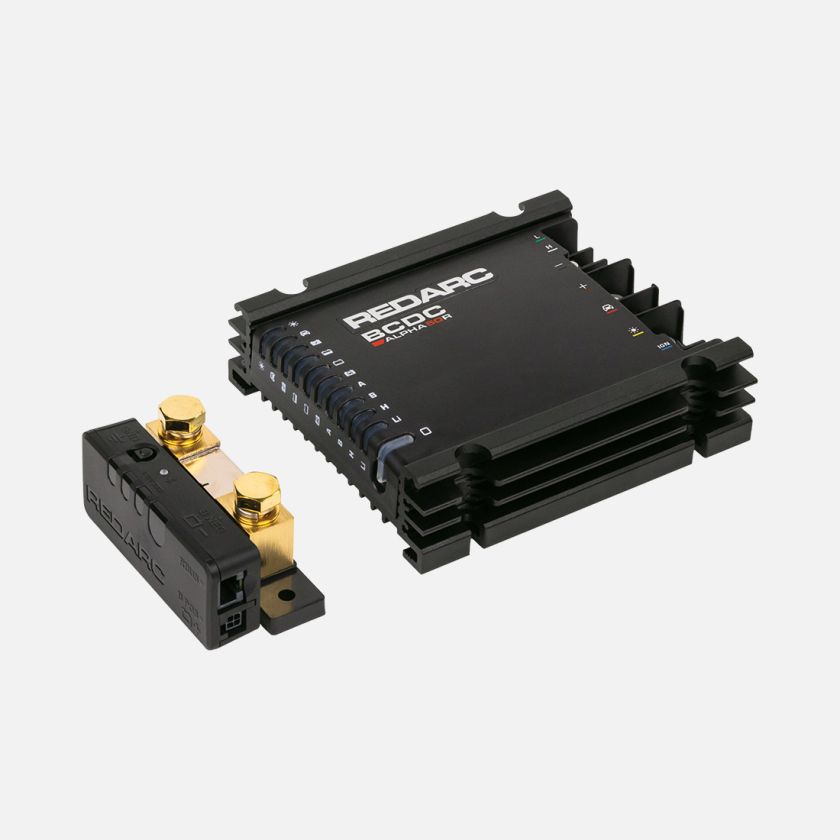

REDARC BCDC Alpha50 R 50A DC to DC Battery Manager
The REDARC BCDC Alpha50 R is a premium 50A battery manager for 4WD, touring, caravan and auxiliary battery systems installed in a protected location.

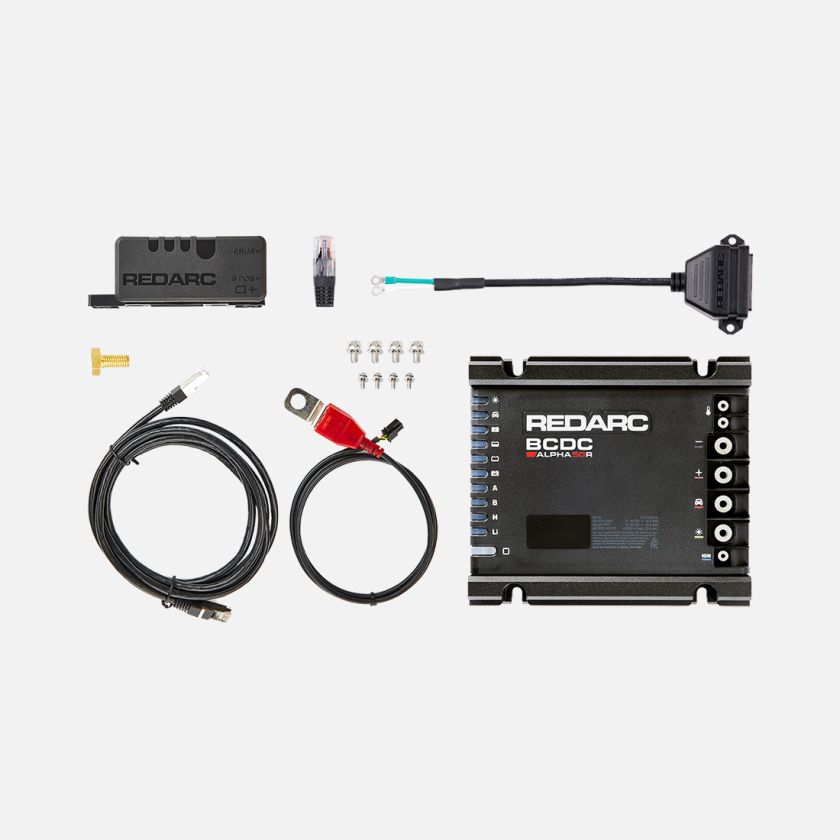

It combines alternator and MPPT solar charging with intelligent battery management, Bluetooth monitoring through the RedVision app, adjustable input current limiting, start battery recovery and solar charge back. The Alpha50 R package also includes REDARC's Smart Battery Monitor for accurate state of charge and current monitoring.
Important:The Alpha50 R is not suitable for engine bay installation.
Key Features
50A DC to DC charging from alternator and solar inputs
Integrated MPPT solar charging with solar priority
Includes REDARC Smart Battery Monitor
Bluetooth monitoring and control through the RedVision app
Adjustable input current limit for modern vehicle electrical systems
Start battery recovery and solar charge back functions
Compatible with common automotive battery types including LiFePO4
Screw terminal connections and over the air firmware updates
Designed for protected in cabin, canopy or similar installations
Technical Specifications
Charging current:50A Start battery input:9 to 32V DC Solar input:9 to 48V DC Output voltage:12V Operating temperature:-20°C to 60°C Charger dimensions:164 × 146 × 44 mm Charger weight:0.96 kg Warranty:2 years Model:BCDC12050R
Complete Your Installation
Pair the Alpha50 R with a 12 Volt Hub protected location installation loom or job ready wiring kit for a complete charging and monitoring solution.
