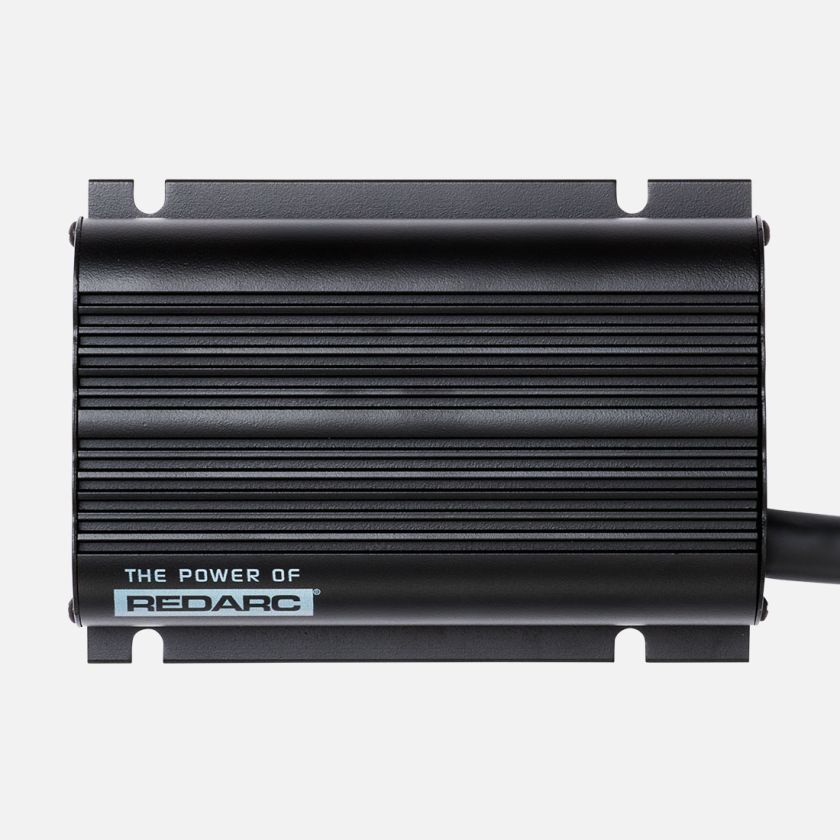

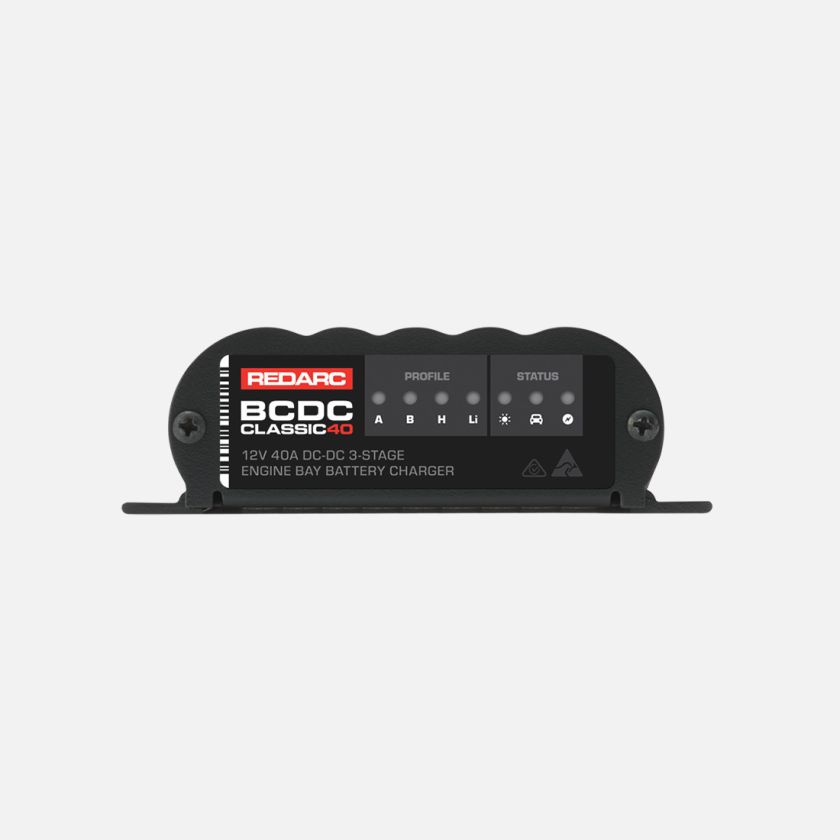

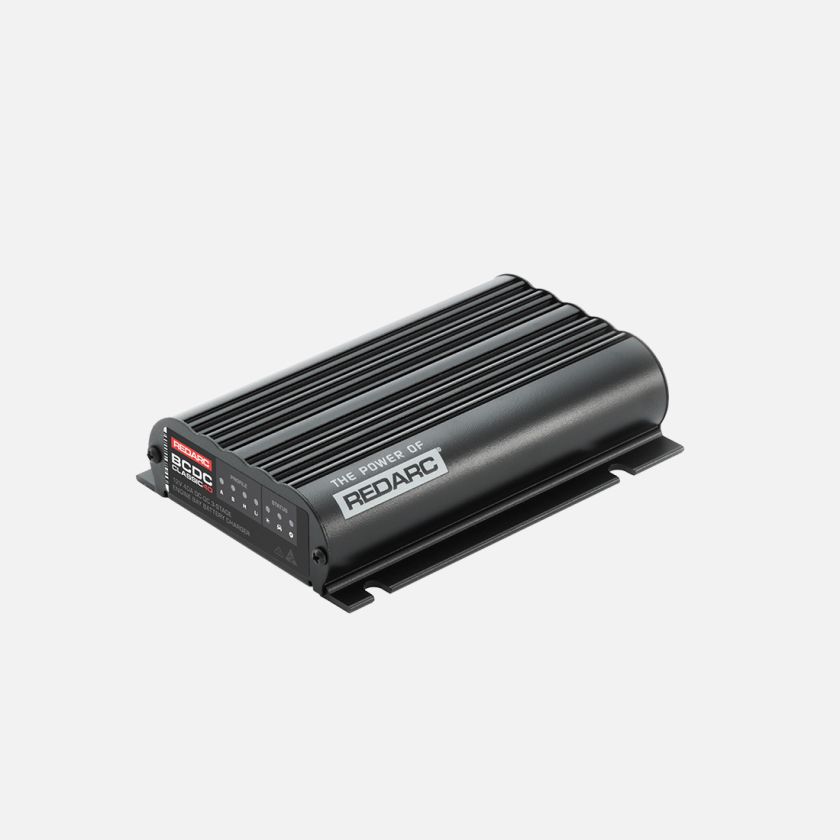

REDARC BCDC Classic40 12V 40A DC to DC Battery Charger
The REDARC BCDC Classic40 is a rugged 40A under bonnet DC to DC battery charger suited to higher capacity 4WD, touring and auxiliary battery systems.
It combines alternator charging and MPPT solar in one proven package, charging from both sources simultaneously while Green Power Priority uses available solar first.
Key Features
40A DC to DC charging output
Separate alternator and solar inputs
Integrated MPPT solar regulator with Green Power Priority
Simultaneous alternator and solar charging
Compatible with 12V and 24V standard or smart alternator systems
Suitable for AGM, gel, standard lead acid, calcium and LiFePO4 batteries
Rugged potted construction for demanding engine bay installations
Suitable for engine bay, cabin, canopy and trailer installations
Designed and built in Australia
Technical Specifications
Charging current:40A Input voltage:9 to 32V DC Solar input:9 to 32V DC Output voltage:12V DC Recommended input fuse:60A Recommended output fuse:60A Dimensions:165 × 120 × 37 mm Weight:1.0 kg Warranty:2 years Model:BCDC1240D
Complete Your Installation
Pair the Classic40 with a 12 Volt Hub installation loom or job ready wiring kit for a complete charging installation with correctly sized cable and circuit protection.
