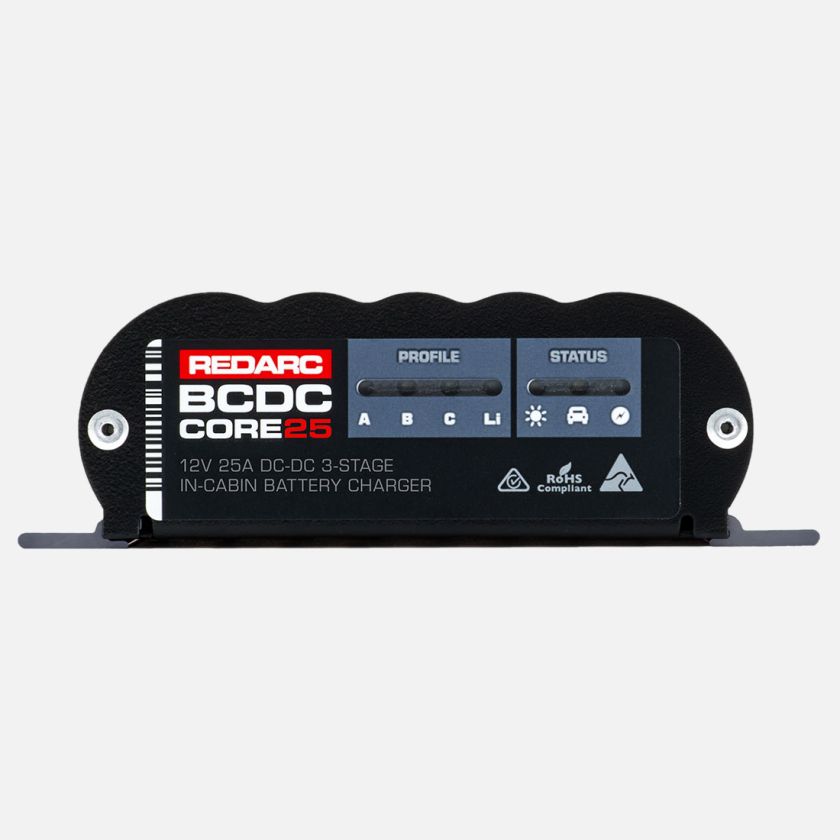

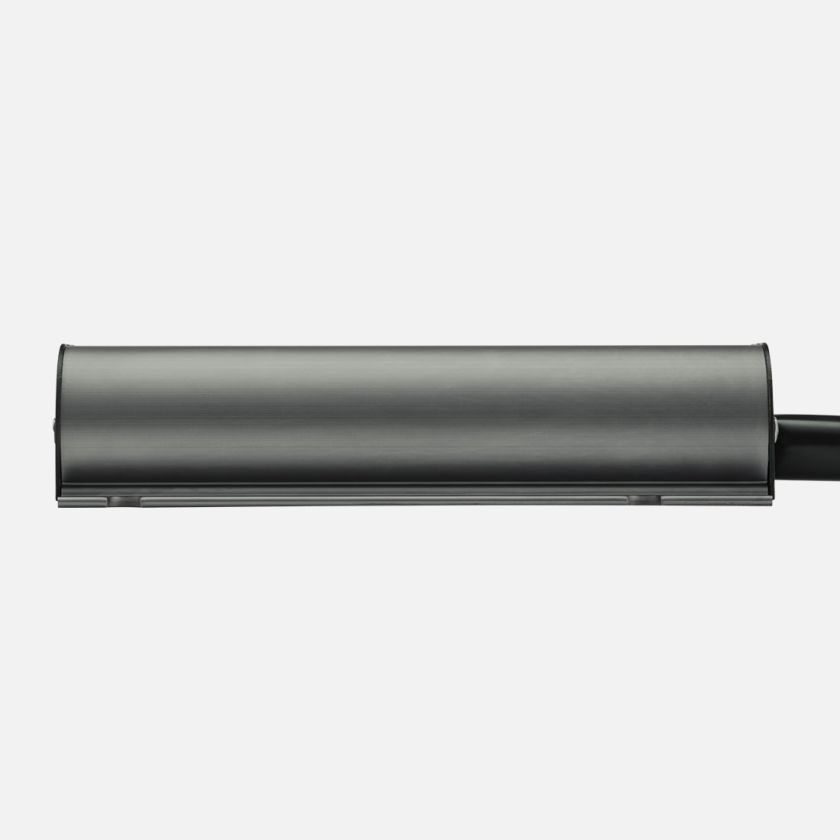

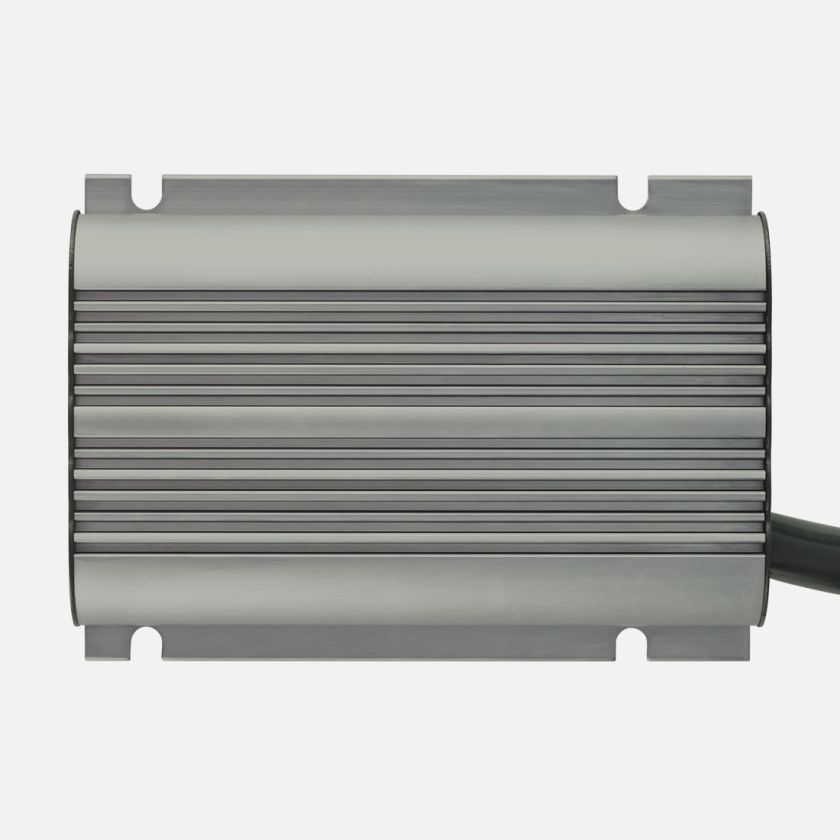

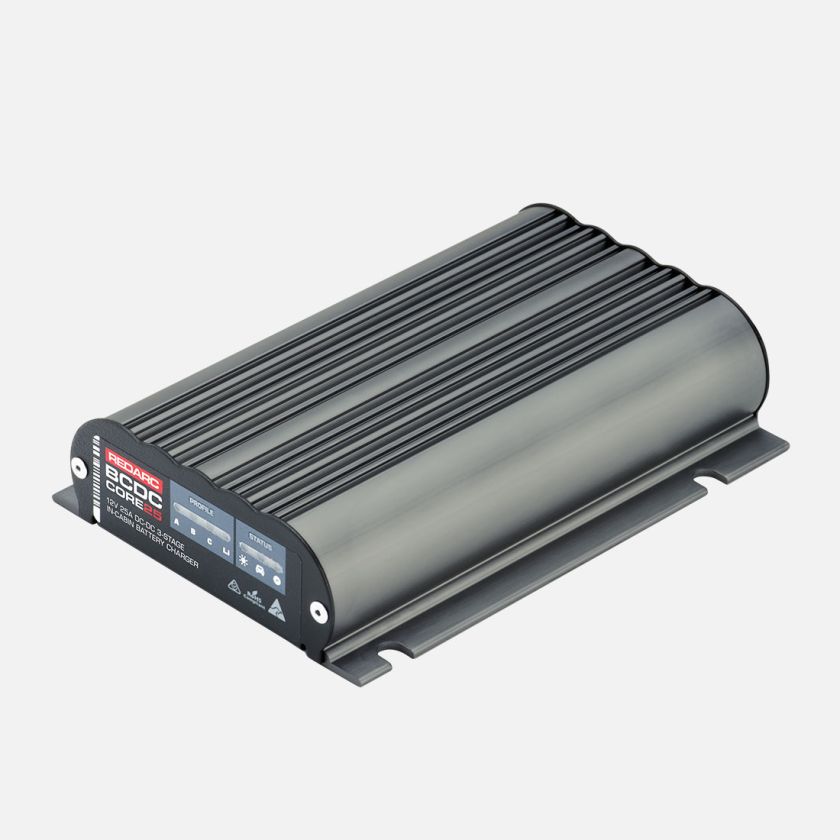

REDARC BCDC Core25 In Cabin 12V 25A DC to DC Battery Charger
The REDARC BCDC Core25 is a compact 25A DC to DC charger designed for protected in cabin, canopy and battery box installations.
Combining alternator charging and an integrated MPPT solar regulator, the Core25 can charge from both sources simultaneously while Green Power Priority makes the most of available solar power.
Key Features
25A DC to DC charging output
Designed for in cabin, canopy and battery box installations
Integrated MPPT solar charging with Green Power Priority
Simultaneous alternator and solar charging
Compatible with 12V and 24V standard or smart alternator systems
Suitable for AGM, gel, standard lead acid, calcium and LiFePO4 batteries
Compact fan free and relay free design
Designed, tested and manufactured in Australia
Not suitable for engine bay installation
Technical Specifications
Charging current:25A Input voltage:9 to 32V DC Solar input:9 to 32V DC Output voltage:12V DC Recommended input fuse:40A Recommended output fuse:60A Dimensions:165 × 120 × 37 mm Weight:0.9 kg Warranty:2 years Model:BCDCN1225
Complete Your Installation
Pair the Core25 with a 12 Volt Hub cabin or rear mount installation loom to create a compact charging system with the cable, fuses, terminals and installation consumables matched to the job.
