REDARC Inverter Remote Control – RS Series

Control a compatible REDARC RS Series pure sine wave inverter from a convenient location, even when the inverter itself is mounted out of sight.

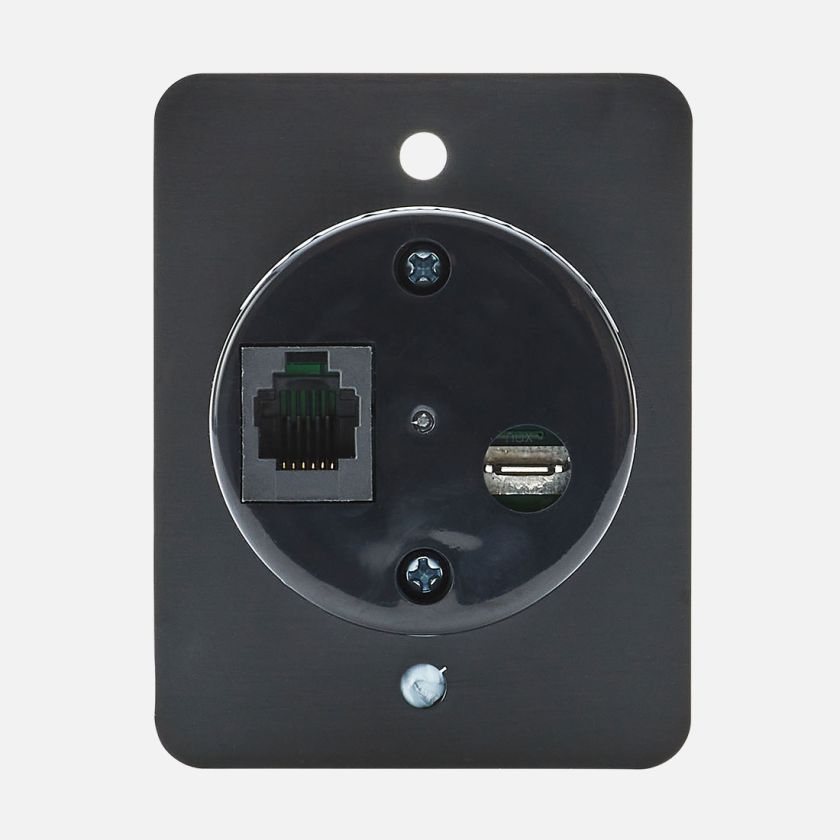

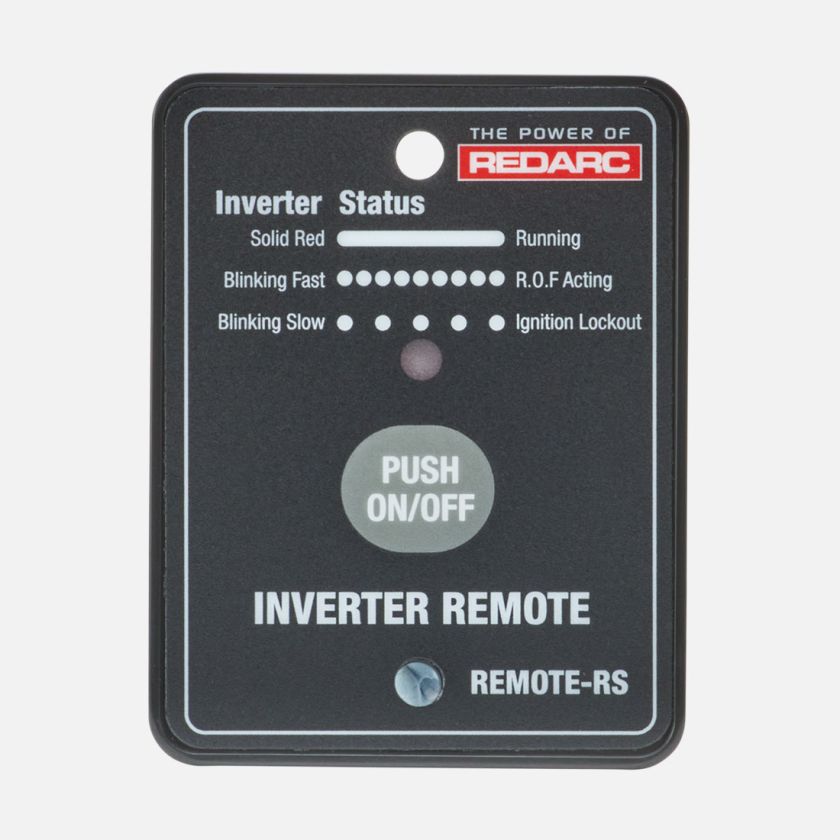

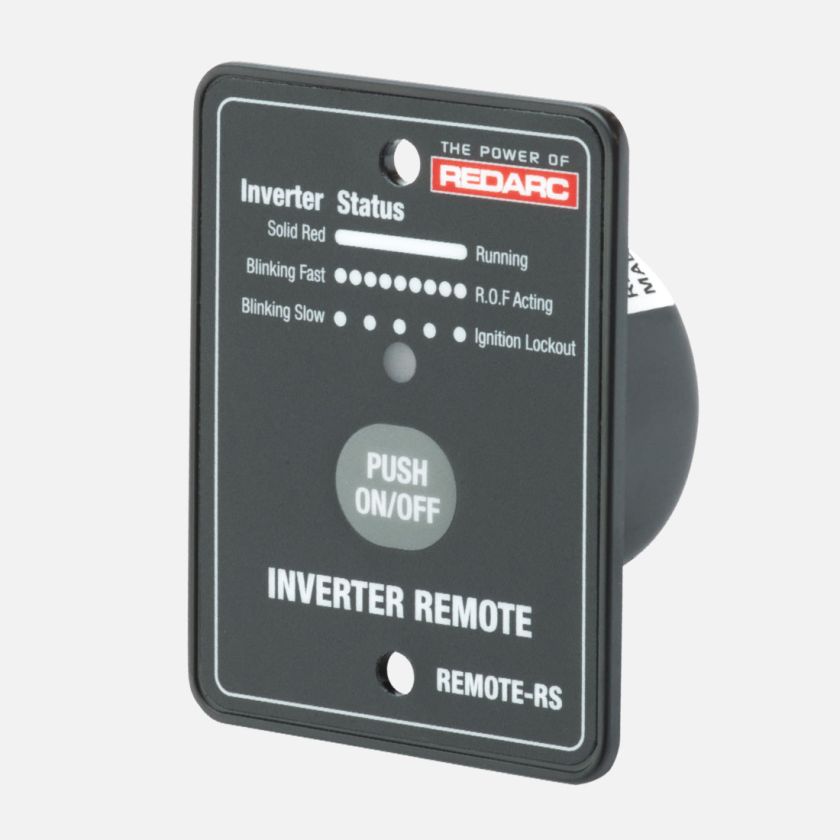

The REMOTE-RS provides remote inverter on/off control along with visual indication of the Ignition Lockout and Return Override functions. Its compact faceplate can be flush mounted for a clean, professional installation, with the supplied eight-metre cable allowing flexible positioning in a 4WD, caravan, campervan or touring setup.

Key features

• Compatible with REDARC RS Series inverters
• Remote inverter on/off control
• Ignition Lockout and Return Override indication
• Flush-mountable faceplate
• Eight-metre connecting cable
• Allows the inverter to be installed out of sight
• Two-year REDARC warranty

Specifications

• SKU: REMOTE-RS
• Faceplate: 73.5 mm high × 57 mm wide
• Standby current: less than 40 mA
• Operating temperature: 0°C to 40°C
• Cable length: 8 m

Compatibility note: This remote is intended for REDARC RS Series inverters. Confirm the inverter model before ordering.
