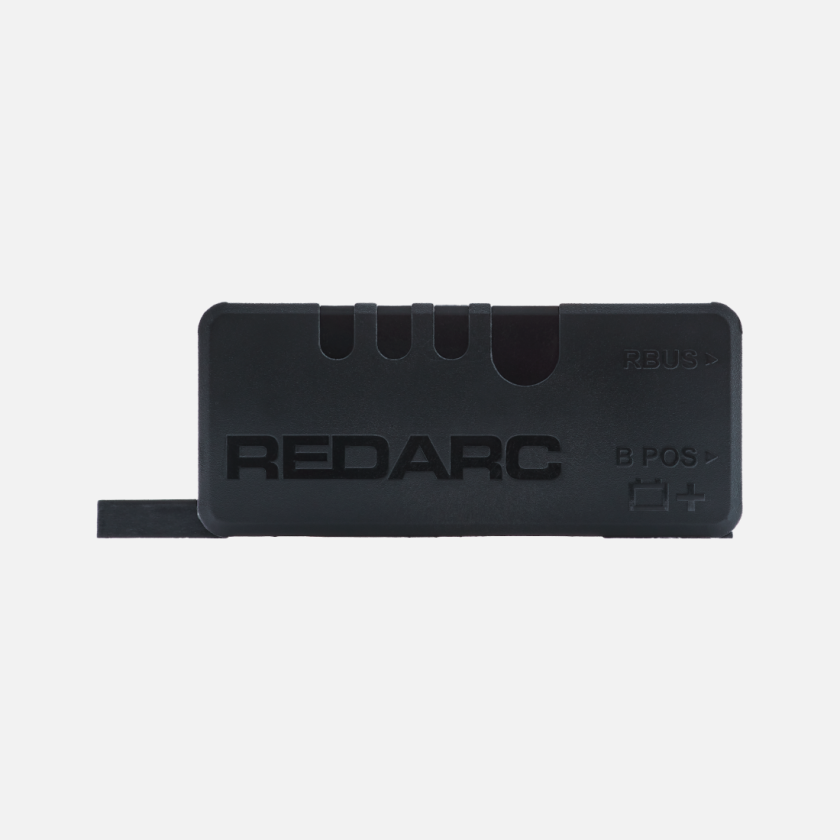

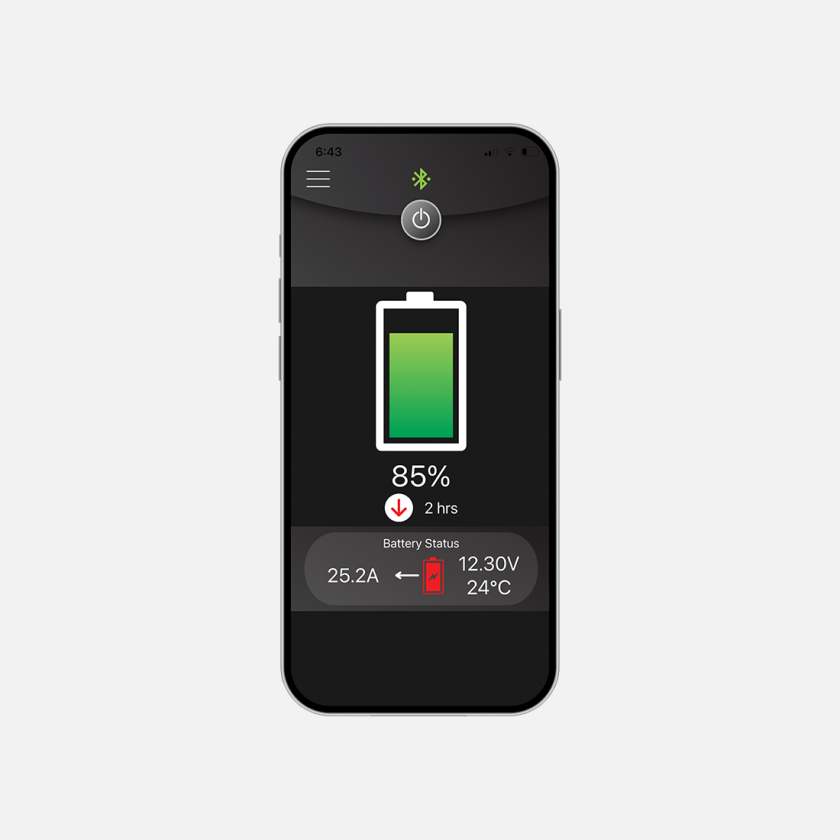

The REDARC Smart Battery Monitor gives you accurate, real time visibility of your auxiliary battery through the RedVision app, including state of charge, estimated time remaining and current flow.

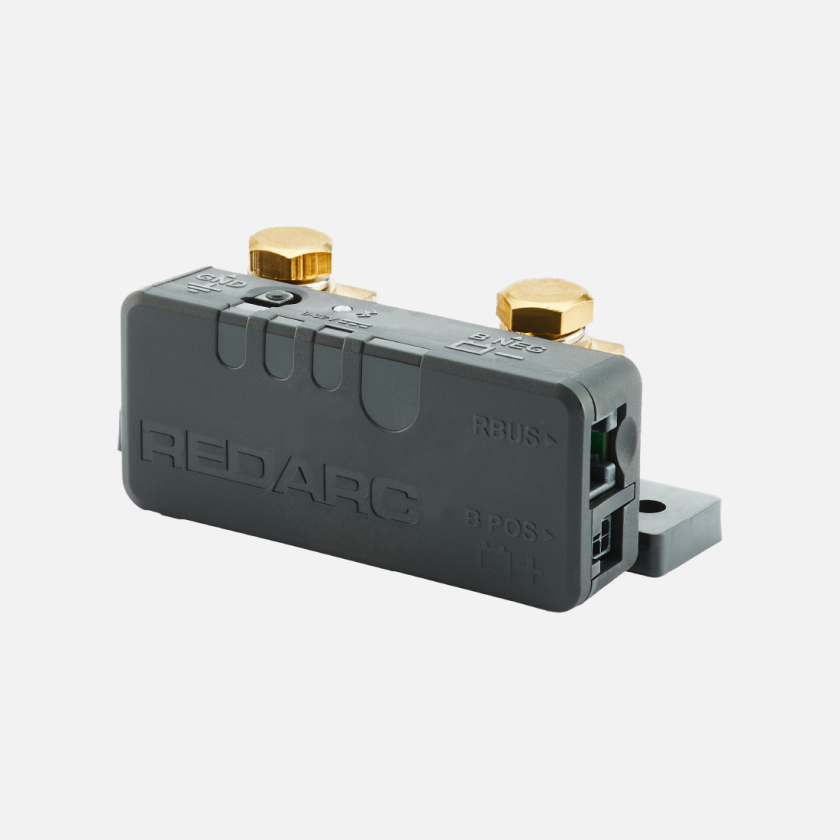

Designed for 12V touring and auxiliary battery systems, the BSEN500 uses a 500A current monitoring shunt and Bluetooth 5.1 connectivity for reliable monitoring from your phone.
Key Features
Real time battery state of charge monitoring
Estimated remaining run time and current flow
500A maximum continuous current rating
Supports battery banks up to 1250Ah
Bluetooth 5.1 connectivity with up to 42m range
RedVision app integration
Compatible with AGM, gel, lithium, standard lead acid and calcium batteries
Designed, tested and manufactured in Australia
Technical Specifications

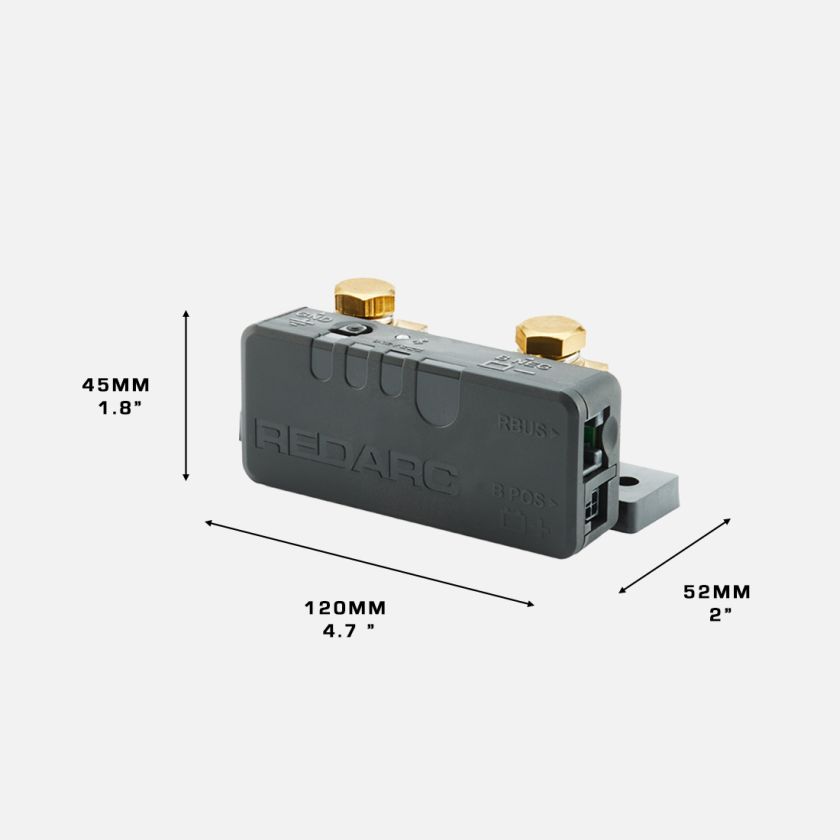

Operating voltage:9 to 32V DC Maximum continuous current:500A Maximum battery capacity:1250Ah Operating temperature:-20°C to 60°C Dimensions:120 × 52 × 45 mm Weight:0.35 kg Warranty:2 years Model:BSEN500
Good to Know
The BSEN500 is not suitable for external or engine bay mounting. Install it in a protected location as part of the monitored battery system.
