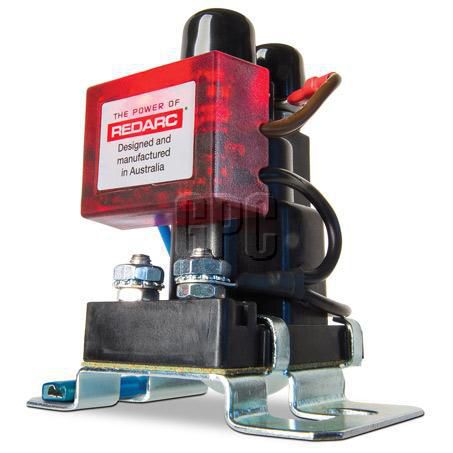

REDARC Smart Start SBI12 100A Battery Isolator

The REDARC Smart Start SBI12 is a 12V, 100A microprocessor-controlled battery isolator for traditional dual-battery systems.

It protects the starting battery from excessive discharge while allowing the auxiliary battery to supply non-essential loads. The SBI12 automatically connects and disconnects the batteries according to system voltage.

Features

• 100A maximum continuous current
• 400A maximum inrush current
• 13.2V turn-on and 12.7V turn-off thresholds
• Low standby current below 5mA
• Power-saving technology
• Fault indication and surge protection
• Silver contacts suitable for marine applications
• Compact 80 × 75 × 70mm design
• Two-year REDARC warranty
• Australian made

Compatibility note: The SBI12 is intended for suitable traditional 12V dual-battery systems. Modern smart-alternator vehicles and lithium auxiliary batteries commonly require a correctly selected DC-DC charger instead. Contact 12 Volt Hub if you are unsure.
