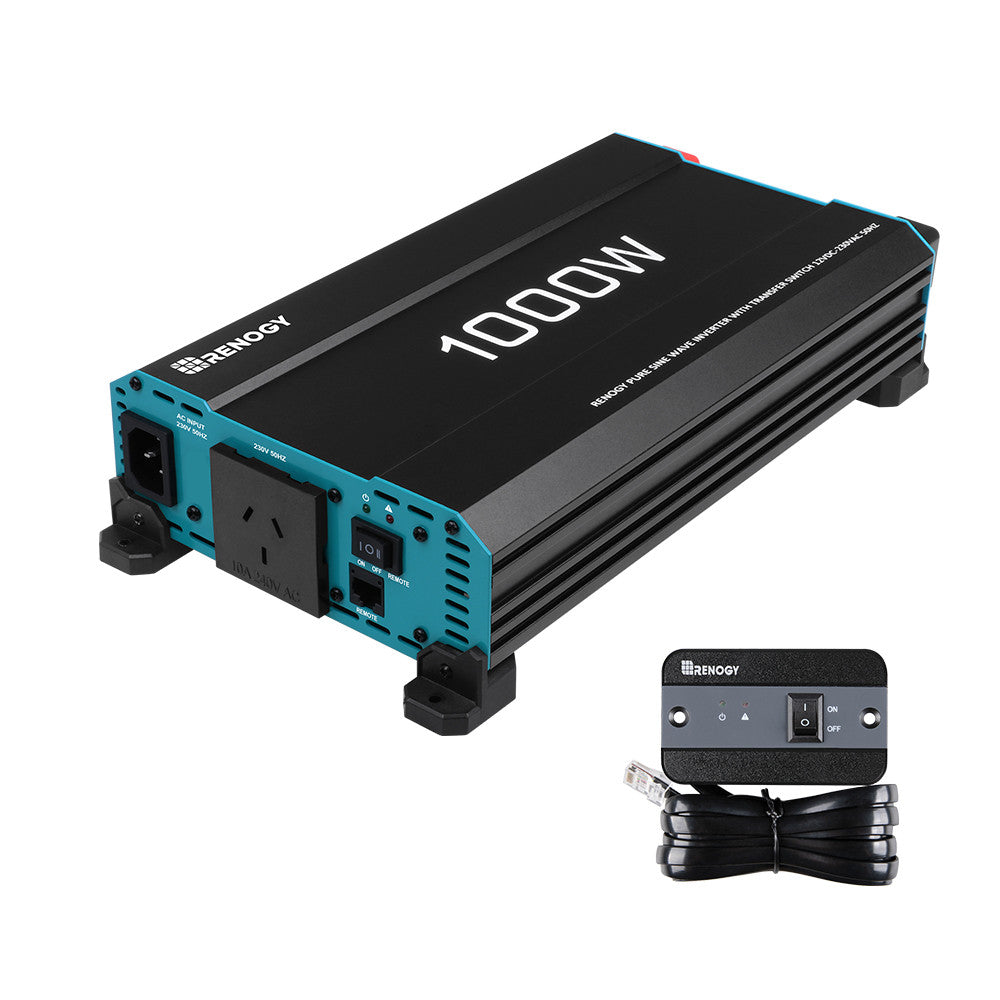

The Renogy 1000W Pure Sine Wave Inverter converts 12V battery power into clean 230/240V AC power for touring, caravan, trade and off grid applications.
With 1000W continuous output, 2000W surge capacity and a built in UPS transfer function, it is well suited to sensitive electronics, laptops, TVs, CPAP equipment, charging equipment and other moderate AC loads. A remote control makes operation easier when the inverter is mounted out of reach.
Key Features
1000W continuous pure sine wave output
2000W surge capacity
12V DC input and 220 to 240V AC output
UPS transfer between AC mains and battery supply within 50ms

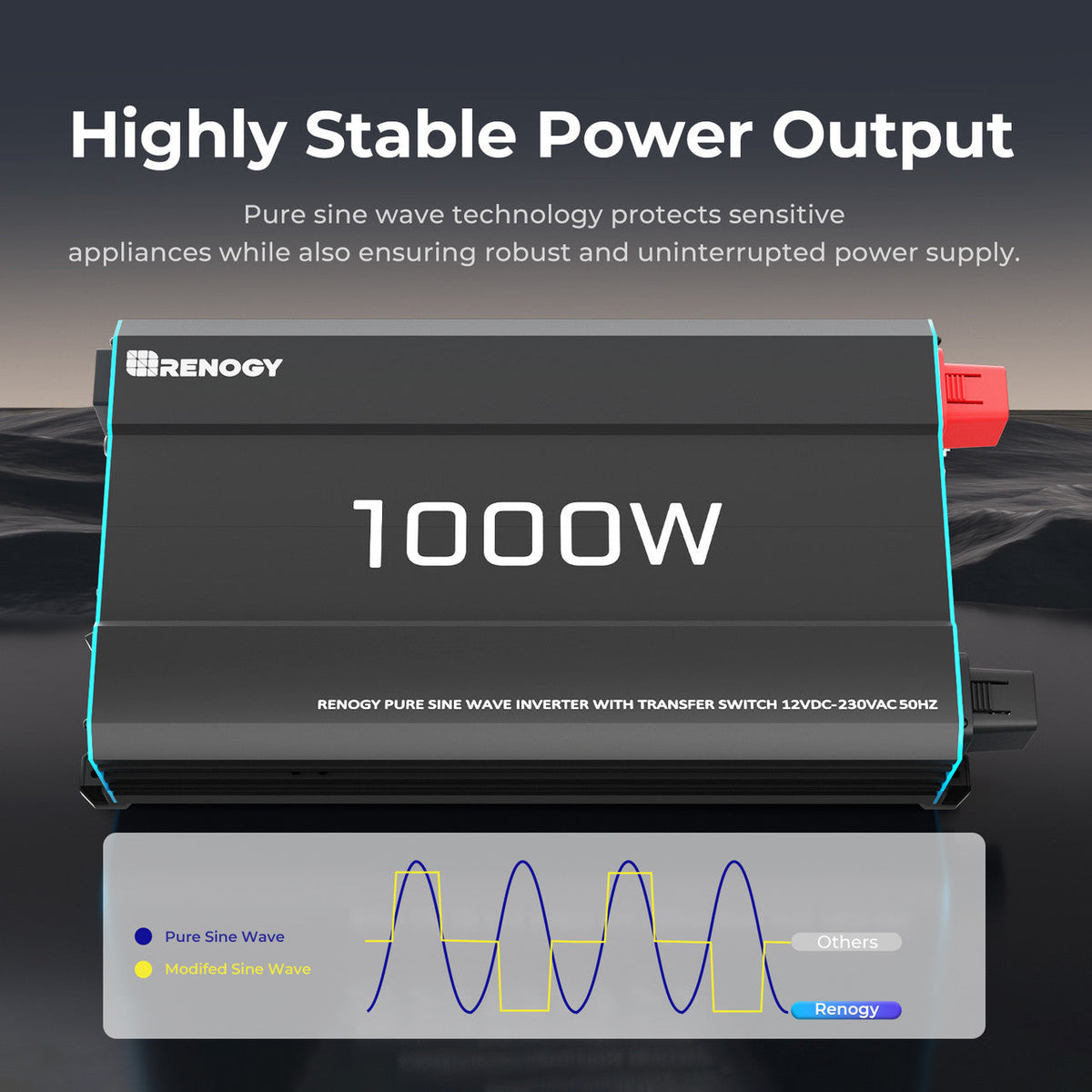

Pure sine wave output for sensitive electronics

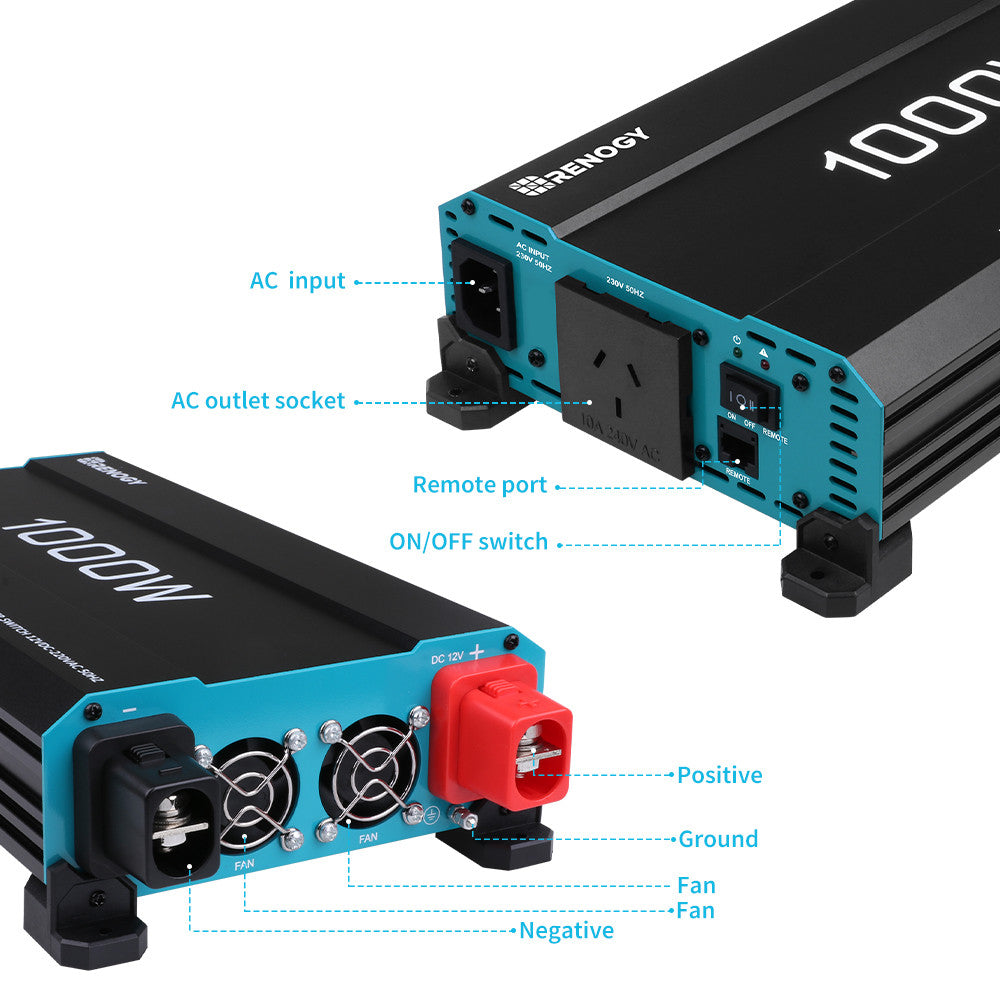

Remote control operation

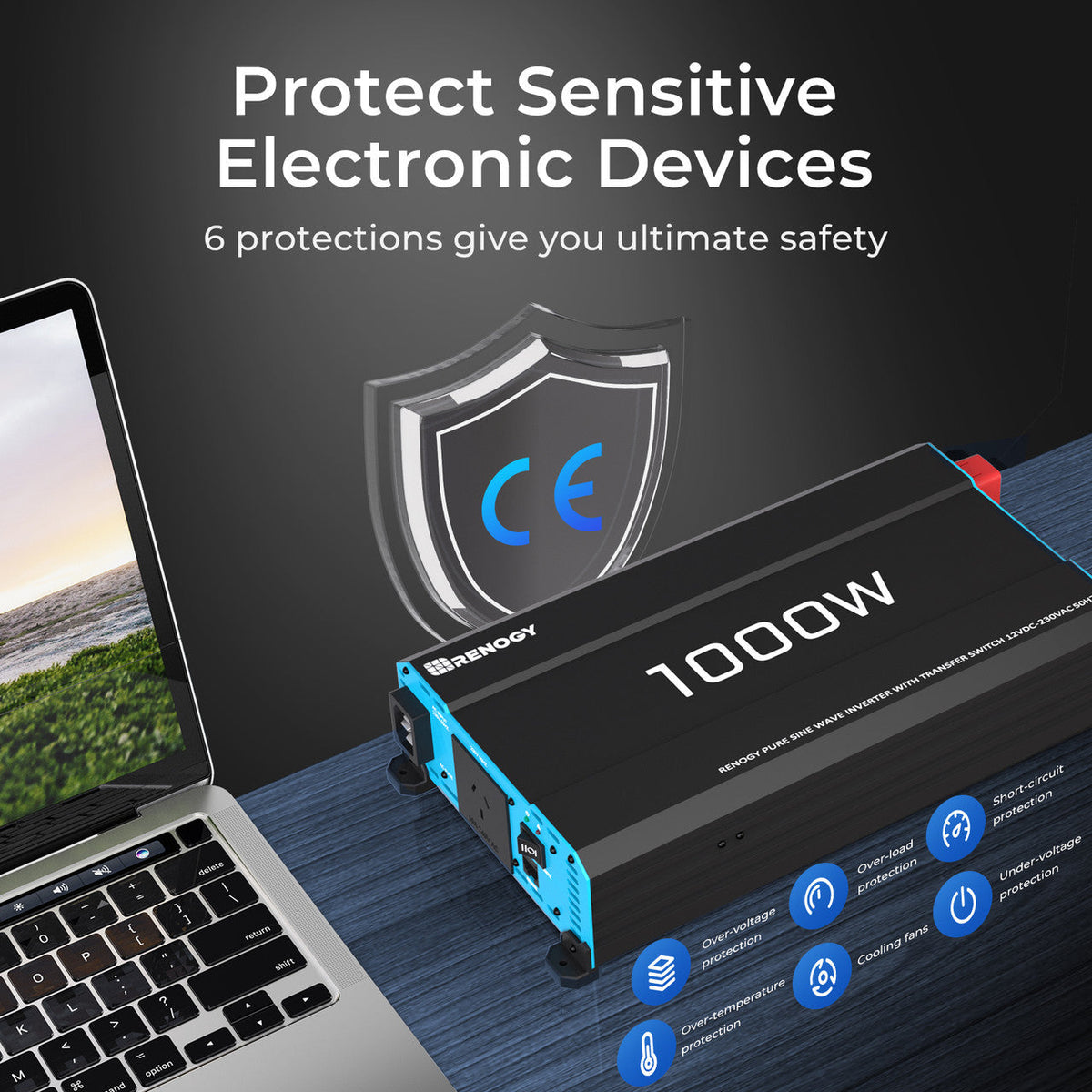

Low and high voltage protection
Intelligent cooling and aluminium housing
Compatible with 12V lithium and lead acid battery systems
Technical Specifications
Continuous output:1000W Surge output:2000W Input:12V DC Input range:11 to 16V DC AC output:220 to 240V AC, 50Hz Waveform:Pure sine wave Maximum efficiency:90% UPS transfer time:Within 50ms Dimensions:342 × 173 × 76 mm Weight:2.6 kg Warranty:1 year Model:R-INVT-PUH1-101235-AU
Australian Installation Note
This inverter does not include a built in RCD. Any fixed or hardwired 230/240V AC installation must use the required external RCD protection and be completed in accordance with applicable Australian electrical requirements. DC battery cables are not included.
Complete Your Installation
Pair the inverter with correctly sized DC cabling, battery protection and installation hardware suitable for the battery bank and cable run.
