The Renogy 3000W Pure Sine Wave Inverter is a high output 12V to 230/240V AC solution for demanding touring, caravan, trade and off grid power systems.
With 3000W continuous output and 6000W surge capacity, it provides the headroom required for larger appliances, power tools and higher demand AC loads. The built in UPS function transfers between AC mains and battery power within 50ms, while pure sine wave output provides clean power suitable for sensitive equipment.
Key Features
3000W continuous pure sine wave output
6000W surge capacity
12V DC input and 220 to 240V AC output
UPS transfer between AC mains and battery supply within 50ms
Pure sine wave output for sensitive electronics and appliances

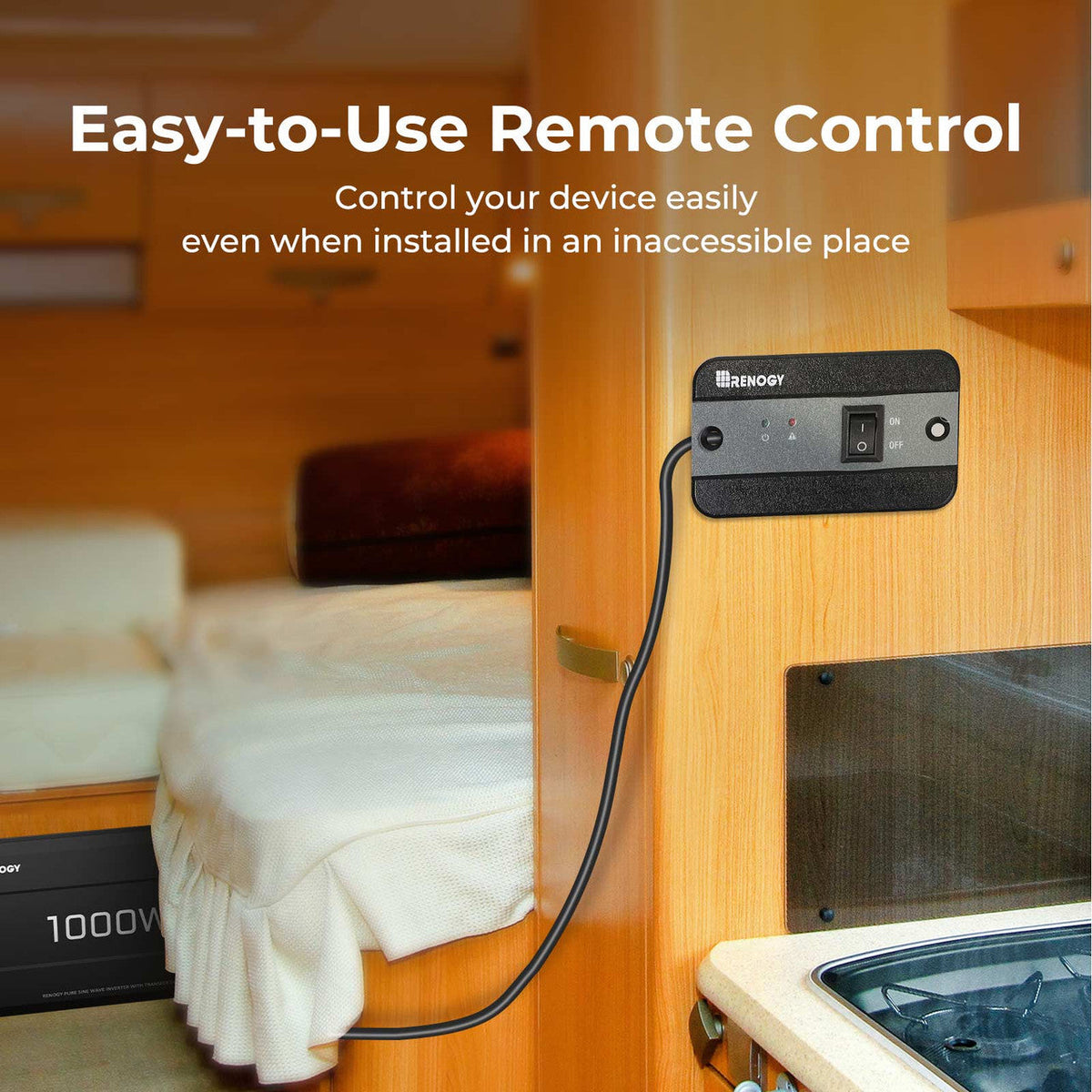

Remote control with 3m cable
Low noise intelligent cooling
Durable aluminium housing
Compatible with 12V lithium battery systems including LiFePO4
Technical Specifications

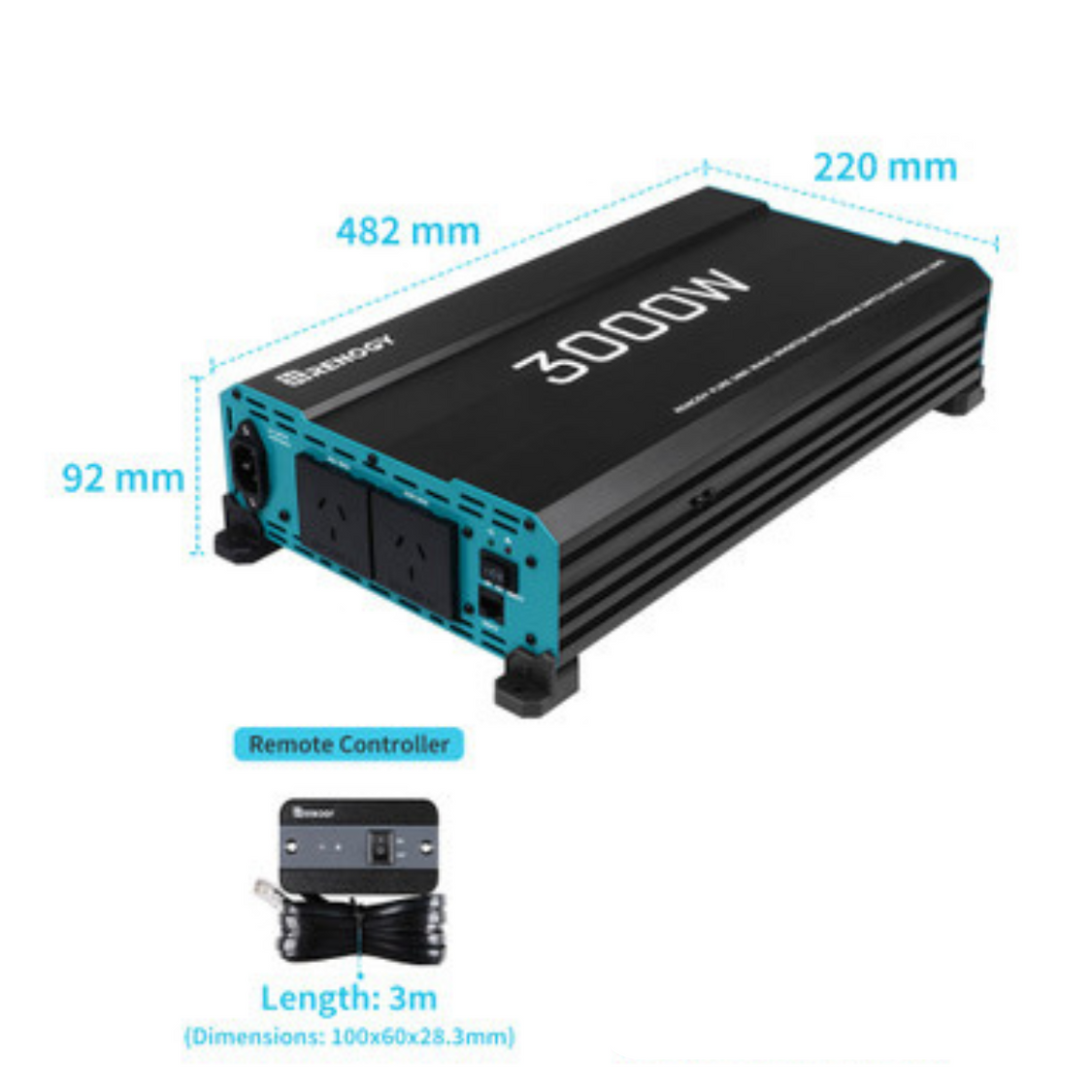

Continuous output:3000W Surge output:6000W Input:12V DC Input range:11 to 16V DC AC output:220 to 240V AC, 50Hz Waveform:Pure sine wave Maximum efficiency:90% UPS transfer time:Within 50ms Dimensions:482 × 220 × 92 mm Weight:6.4 kg Warranty:1 year Model:R-INVT-PUH1-301235-AU
Australian Installation Note
This inverter does not include a built in RCD. Renogy specifies external RCD protection for Australian fixed or hardwired AC installations, with electrical work completed in accordance with applicable Australian requirements. DC battery cables are not included.
Complete Your Installation
A 3000W inverter places substantial demand on the 12V battery system. Use a suitably rated battery bank, correctly sized short DC cable runs and high current fuse protection designed for the installation.
