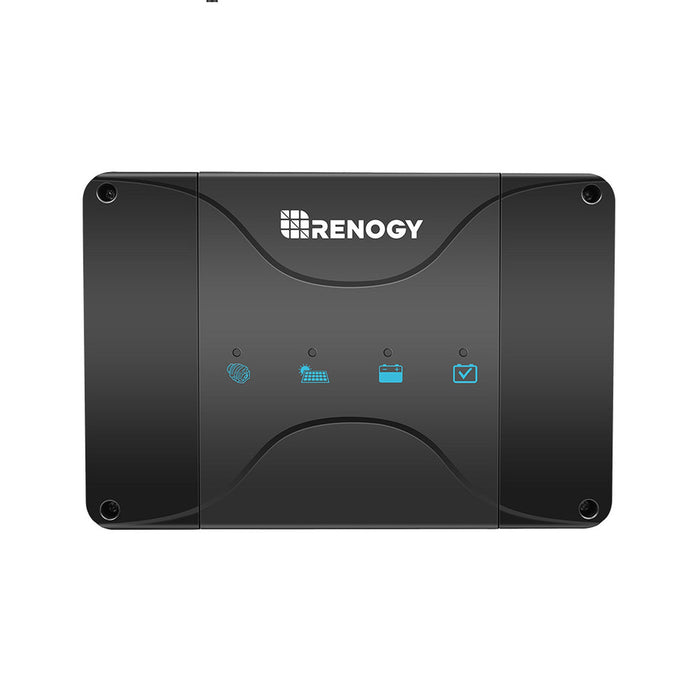

An Australian-made, pre-terminated connection loom for integrating supported Renogy 40A and 50A DC-DC chargers with MPPT solar input with the 12 Volt Hub universal vehicle supply and auxiliary-battery loom range.
The loom uses a common heavy-duty specification suitable for the supported charger models up to 50A. Charger-side terminations are made specifically for the listed models.
Connections
Three-way Anderson-style vehicle-supply input, including ignition trigger
Model-specific DC input connection to the charger
Anderson-style charger output for the fused 500mm auxiliary-battery connection loom
Dedicated, clearly labelled Anderson-style solar input
Protective sleeving and labelled terminations
This is the charger connection loom only. The vehicle supply loom and fused auxiliary-battery connection loom are separate products or can be selected as part of a complete charger package.
The solar connector is intended for a compatible single portable panel or correctly designed solar system within the charger manufacturer's voltage, current and wattage limits. Larger parallel arrays can require additional external protection.
Final suitability depends on the exact charger model and installation. Installation should be completed or checked by a suitably competent person.
