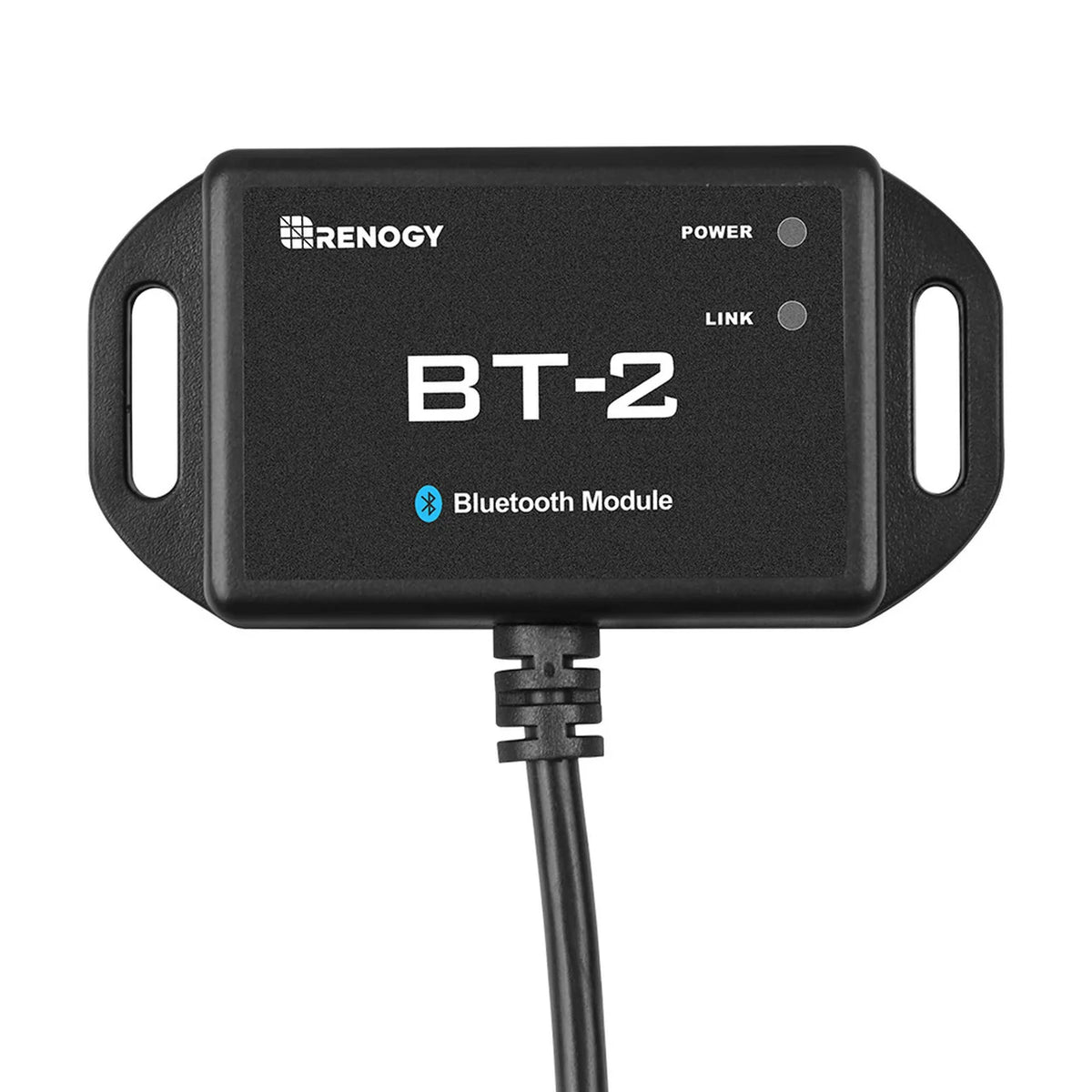

The Renogy BT-2 Bluetooth Module connects compatible Renogy products with an RS485 communication port to the Renogy DC Home app, giving you convenient wireless access to live operating data and historical system information.
Key features

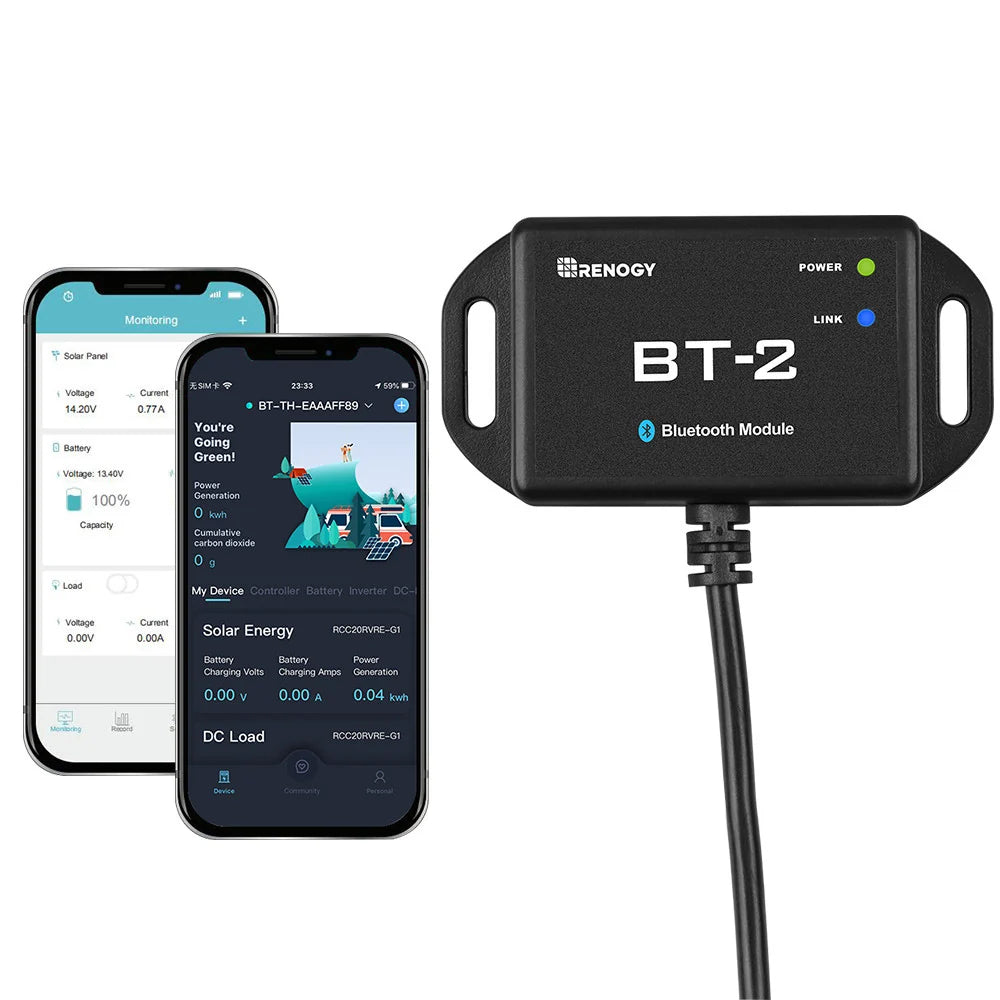

Wireless monitoring through the Renogy DC Home app

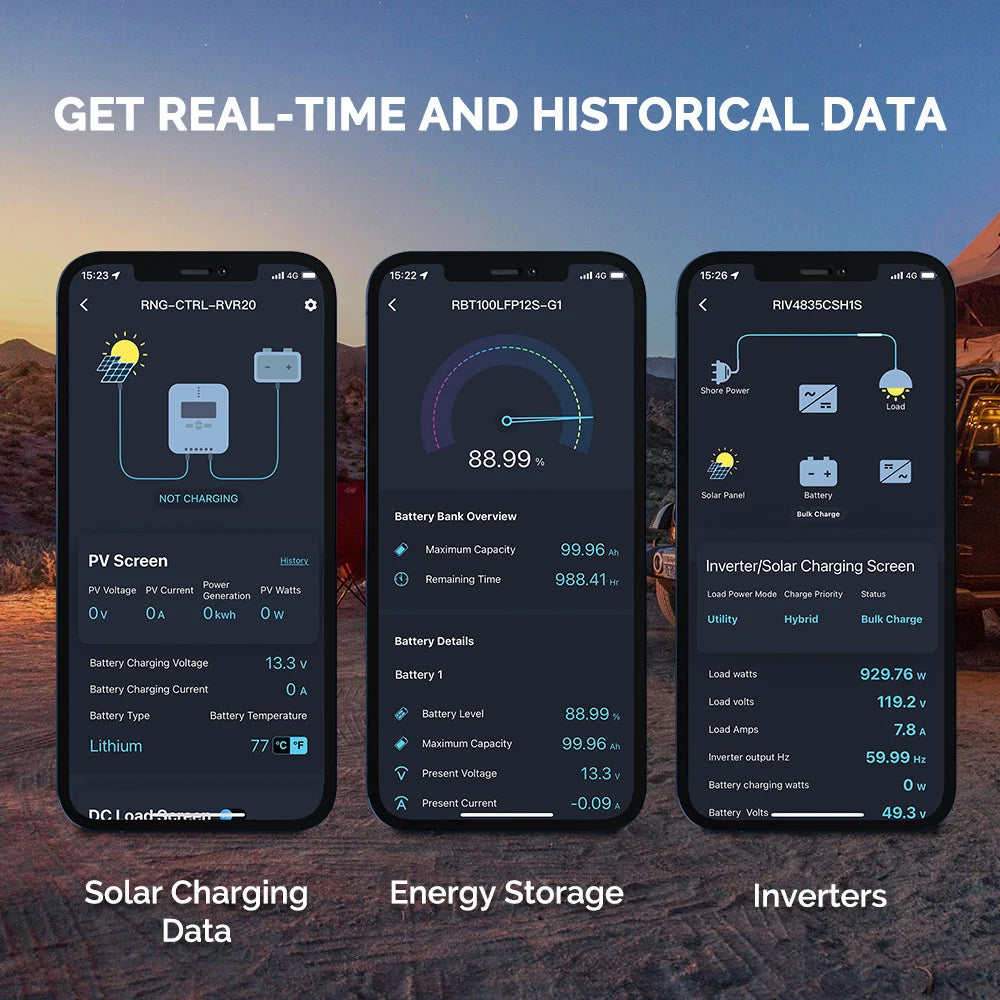

Displays live solar, battery, charging and load data from the connected device
Access to historical operating information

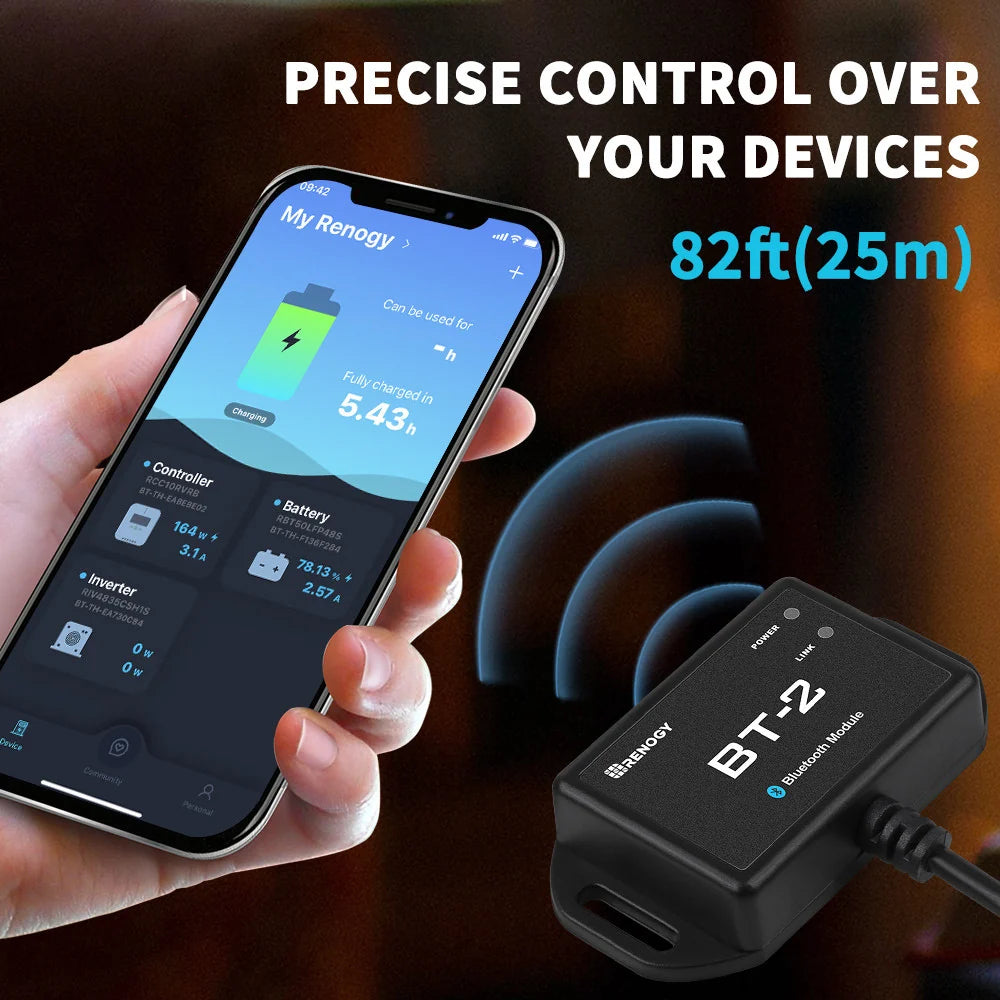

Bluetooth communication range up to 25 metres in suitable conditions
RS485 communication protocol with RJ45 connection

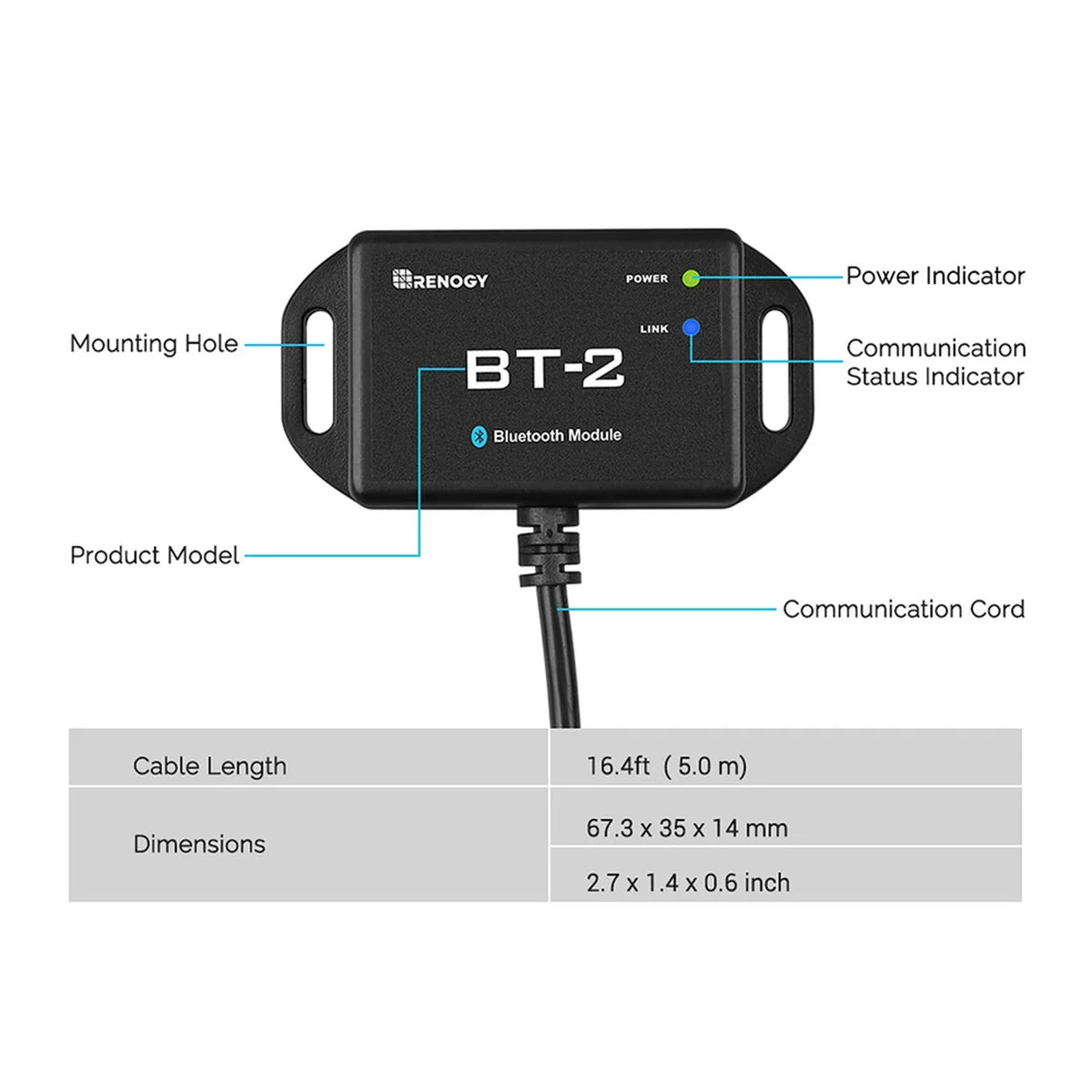

5 metre integrated communication cable
Power and communication-status indicators
IP54 protection rating
Low operating power consumption of approximately 0.05W
Compatibility

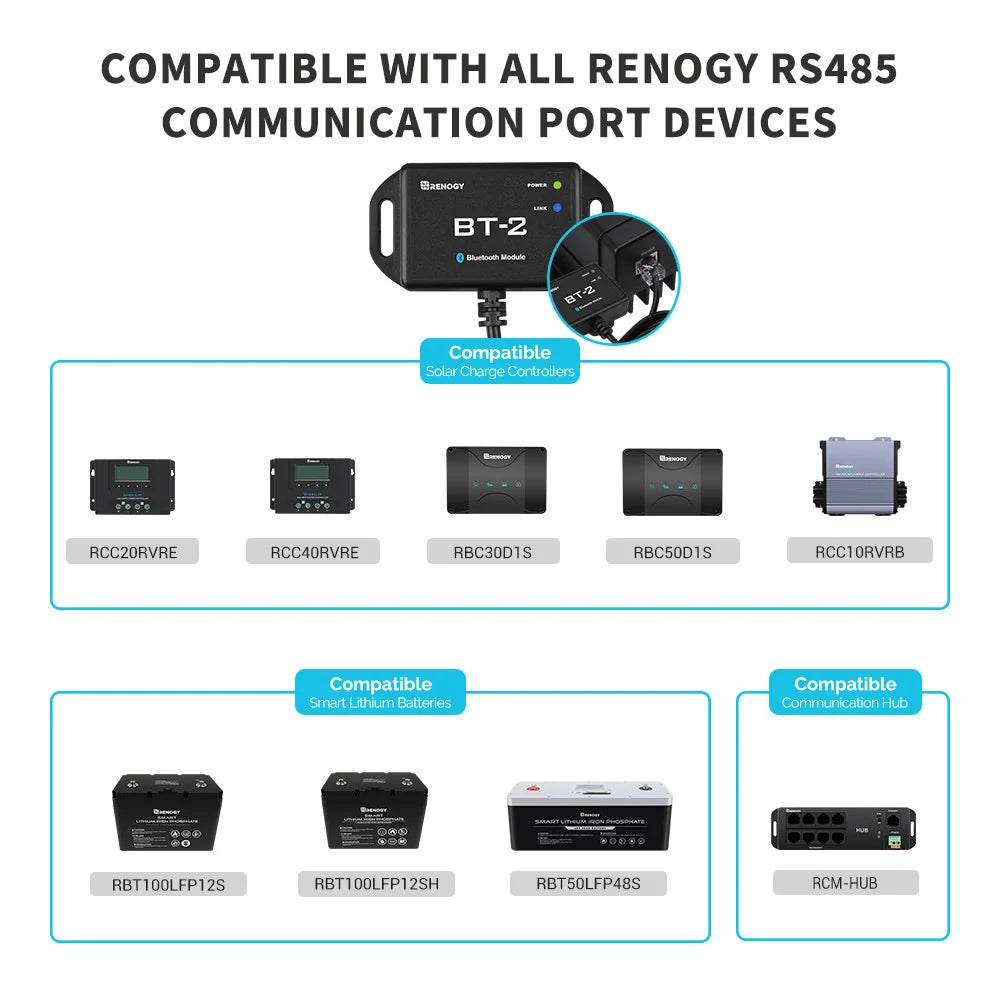

Compatible with supported Renogy devices fitted with an RS485 communication port, including the current Rover Li 20A, 40A and 60A MPPT controller listings. Check the connection port on your device before ordering; the BT-2 is not compatible with older RS232/RJ12 equipment that requires the BT-1.
