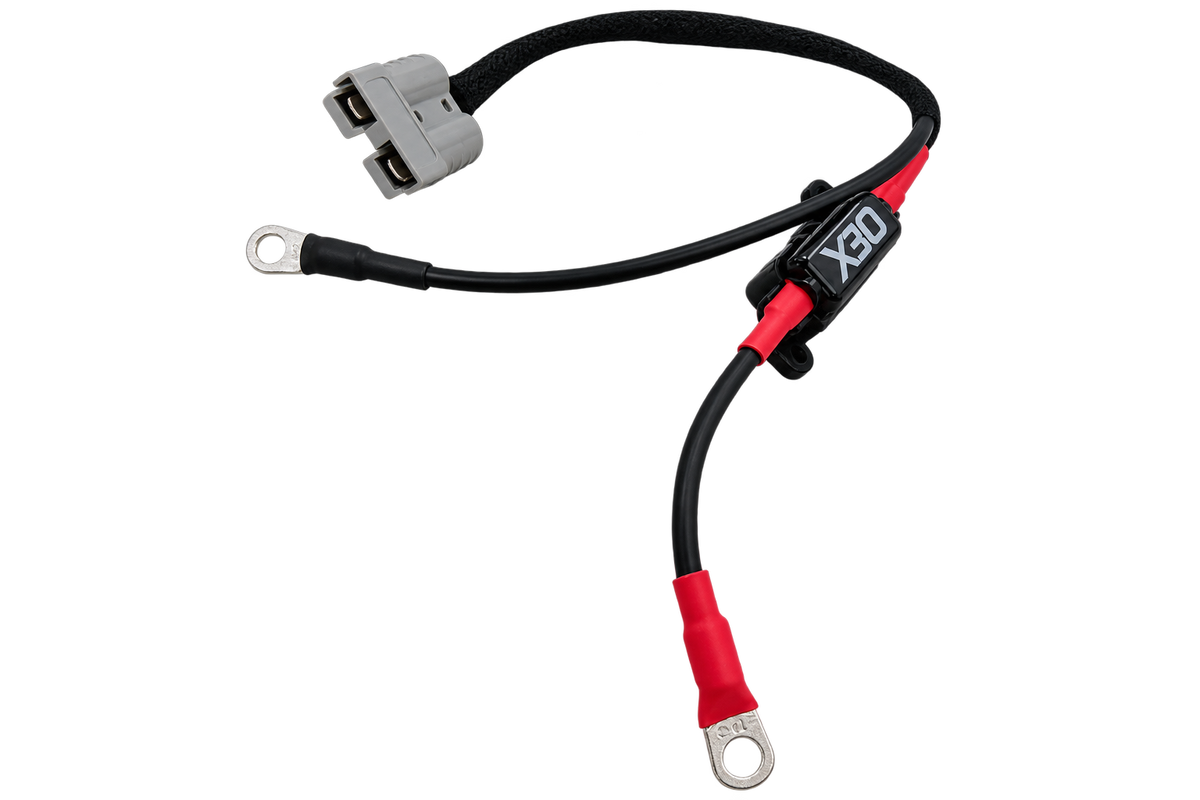

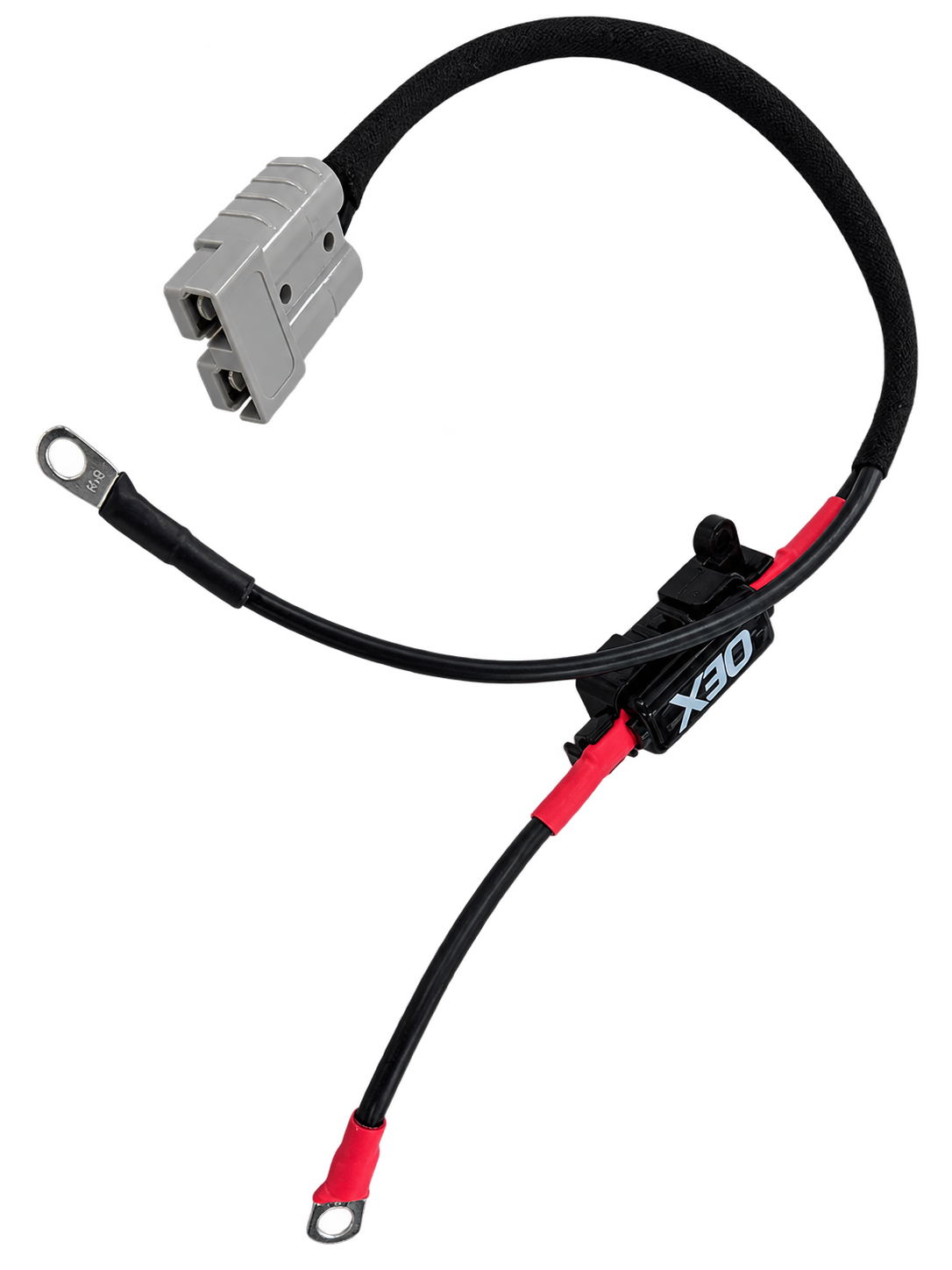

An Australian-made, pre-terminated auxiliary-battery connection loom for connecting the Anderson-style output of a compatible DC-DC charger to an auxiliary battery, battery box or modular power system.
The loom uses heavy-duty cable suitable for supported charging systems up to 50A and is supplied with both 40A and 60A MIDI fuses. This allows the same packaged product to be matched to 25A, 40A or 50A chargers without stocking separate loom versions.
Choose the battery-end connection
Anderson to Anderson
Anderson to M6 positive and negative eyelets
Anderson to M8 positive and negative eyelets
Included
500mm positive and negative battery connection loom

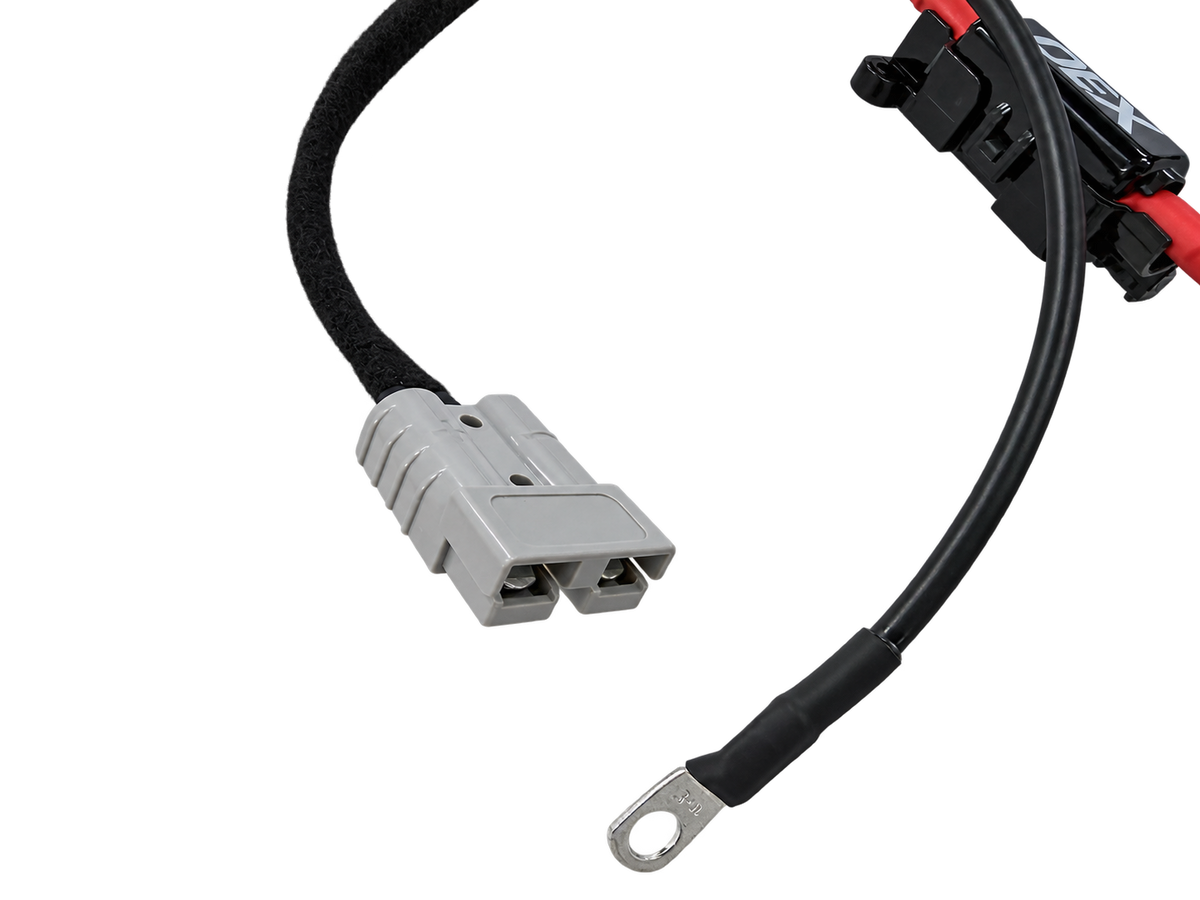

Anderson-style charger-end connection
Selected battery-end termination
Inline MIDI fuse holder positioned close to the battery end
40A MIDI fuse
60A MIDI fuse
Protective sleeving
Heat-shrunk and labelled terminations
Install the fuse specified by the DC-DC charger manufacturer. Only one supplied fuse is installed at a time.
Final suitability depends on charger model, battery connection and installation environment. Installation should be completed or checked by a suitably competent person.
