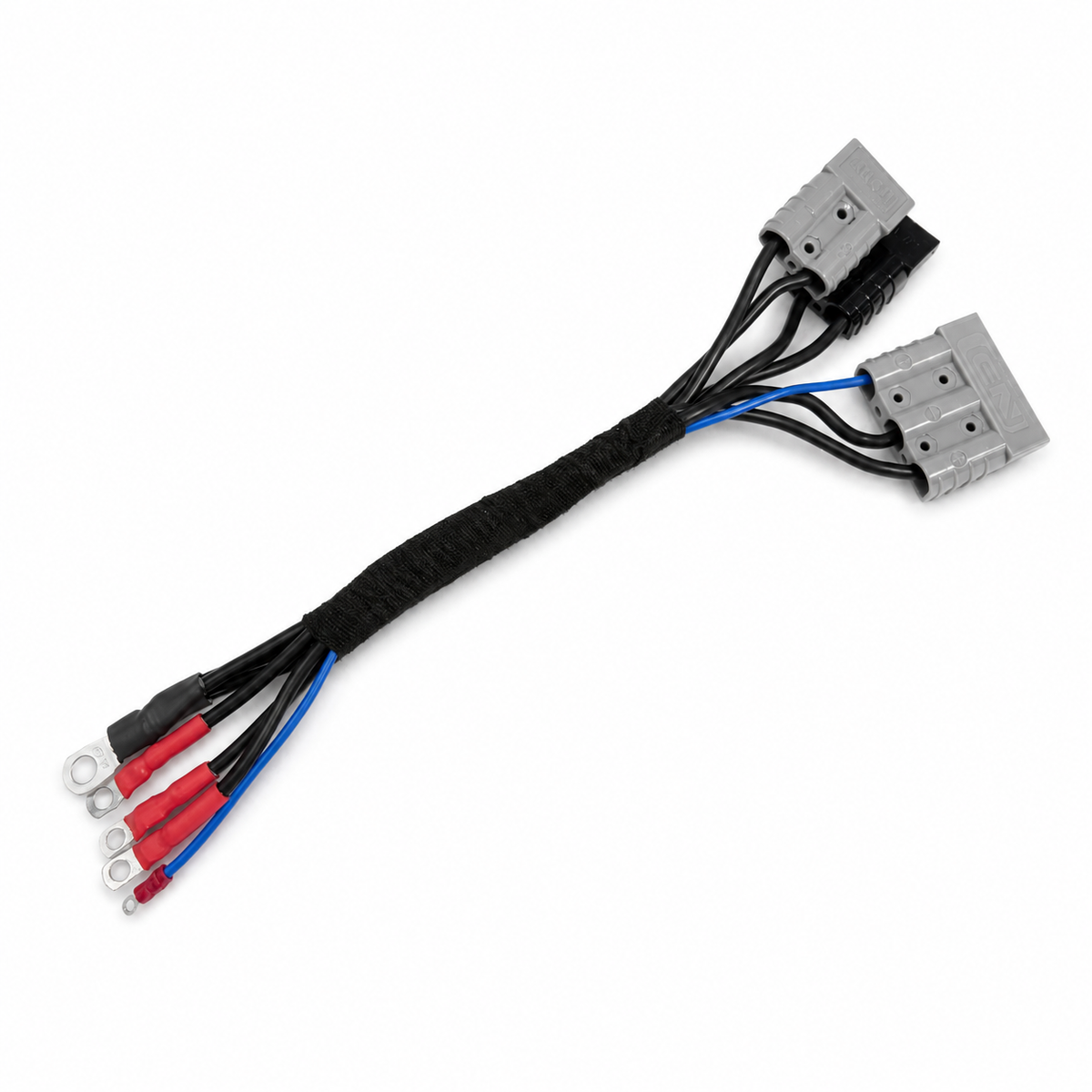

An Australian-made, pre-terminated connection loom for integrating compatible REDARC BCDC Alpha25, Alpha50 and Alpha50 R chargers with the 12 Volt Hub modular vehicle-supply, solar-input and auxiliary-battery loom system.
One universal heavy-duty connection loom is used across the supported REDARC Alpha range and is built to suit charging systems up to 50A.
Compatible REDARC chargers
BCDC Alpha25

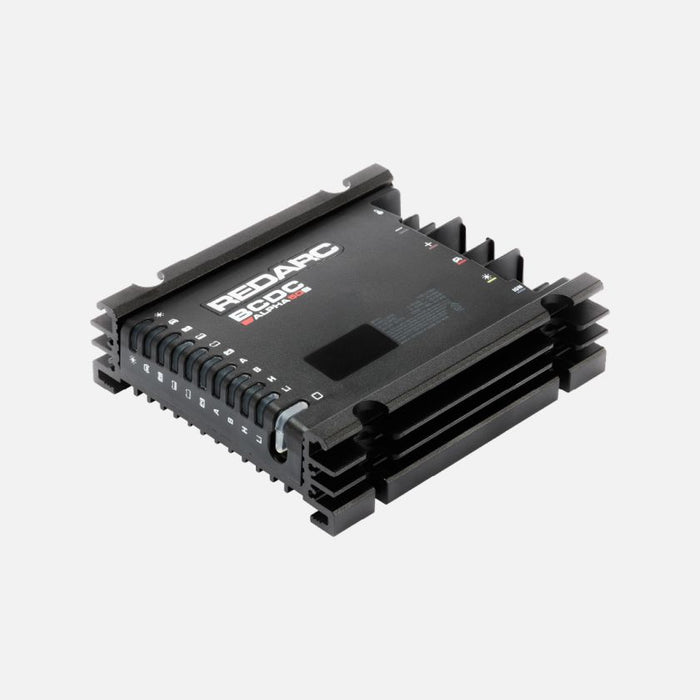

BCDC Alpha50

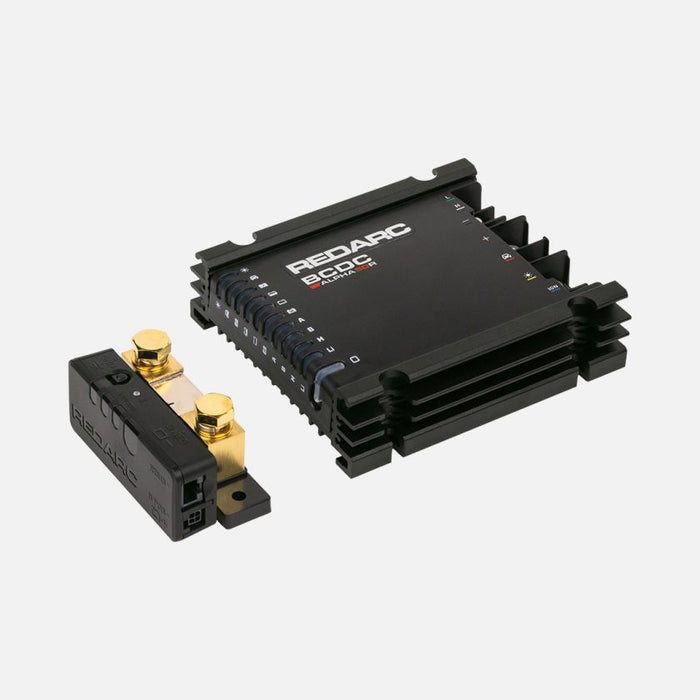

BCDC Alpha50 R

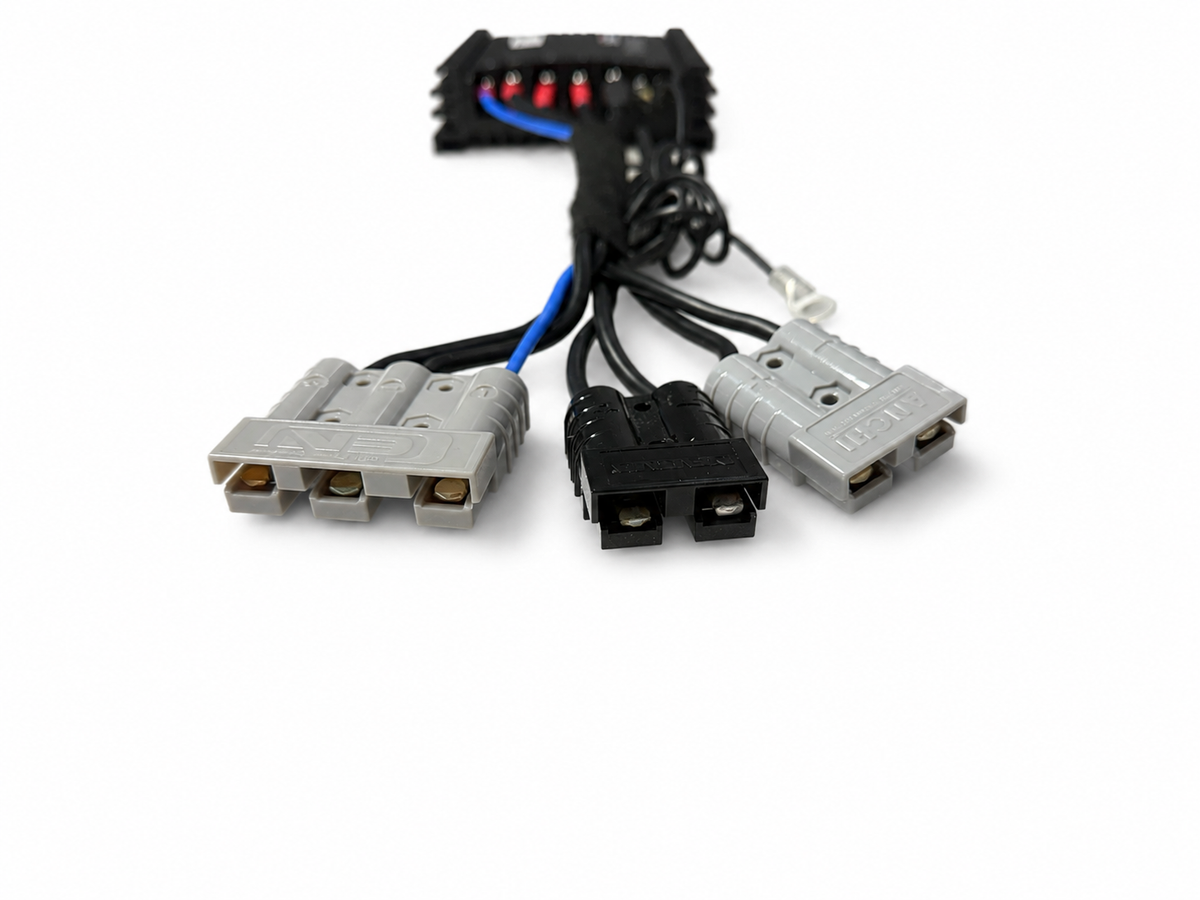

Connections
Three-way Anderson-style vehicle-supply input, including ignition trigger
Pre-terminated charger connections
Anderson-style charger output for the fused 500mm auxiliary-battery connection loom
Dedicated Anderson-style solar input
Protective sleeving and professionally finished terminations

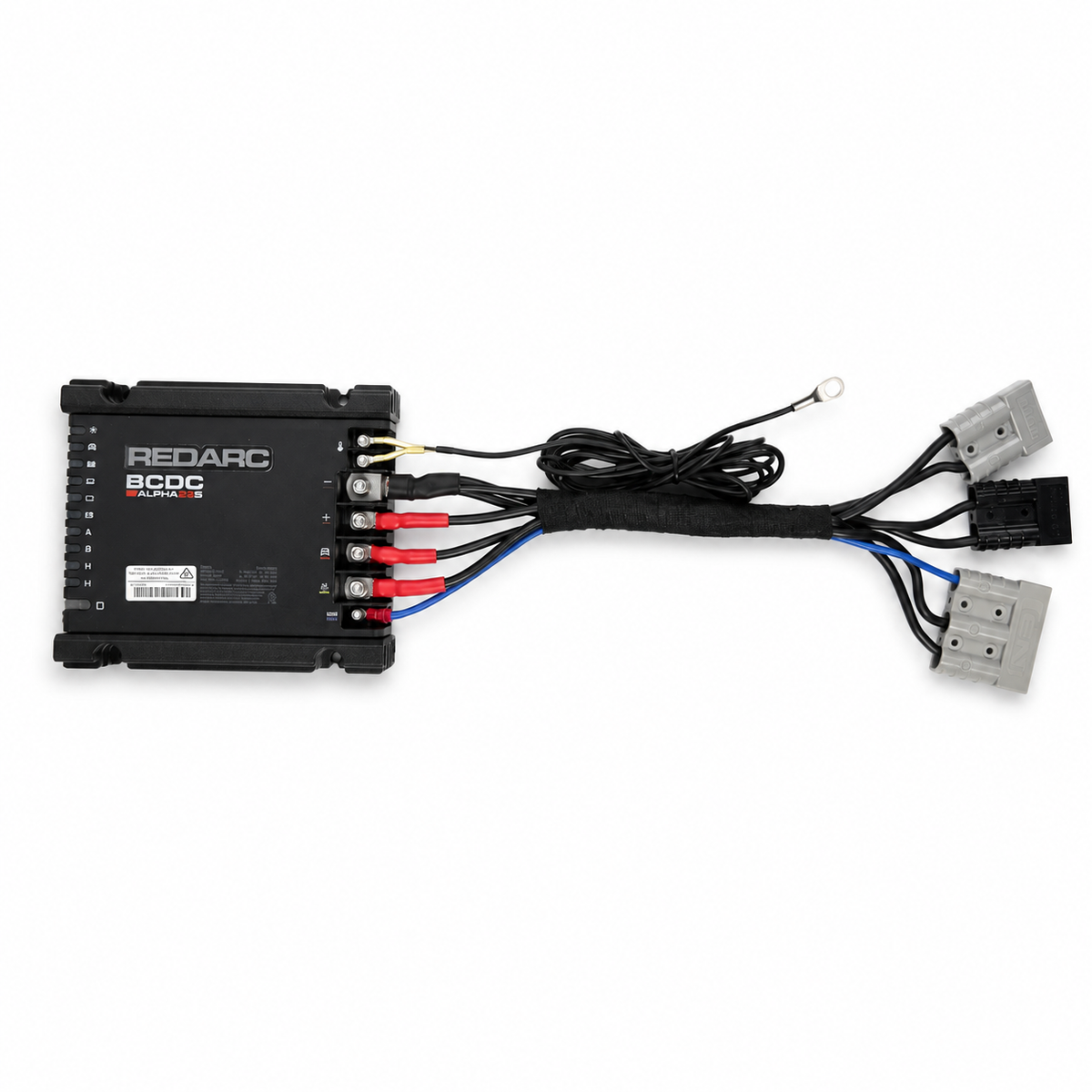

This product is the charger connection loom only. The REDARC charger shown in the photographs is an Alpha25 used to demonstrate the installed connection; the charger is not included.
The vehicle-supply loom and fused auxiliary-battery connection loom are separate modular products or may be selected as part of a complete charger package.
The solar connector is intended for a compatible panel or correctly designed solar array operated within the charger manufacturer’s voltage, current and wattage limits. Larger parallel arrays may require additional external protection.
Final suitability depends on the complete electrical system and installation. Installation should be completed or checked by a suitably competent person.
